1.3.7 Integrated troubleshooting with JP1/IM - Manager

All operational tasks from monitoring to error investigation can be integrated into a single flow of operations based on JP1/IM - Manager.

In the case of JP1/IM - Manager (Intelligent Integrated Management Base), select the component displayed in the Integrated Operation Viewer and check the details such as host and event, and the configuration element and event details related to the place where the problem occurred. When dealing with a problem, review and execute the proposal from the Intelligent Integrated Management Base.

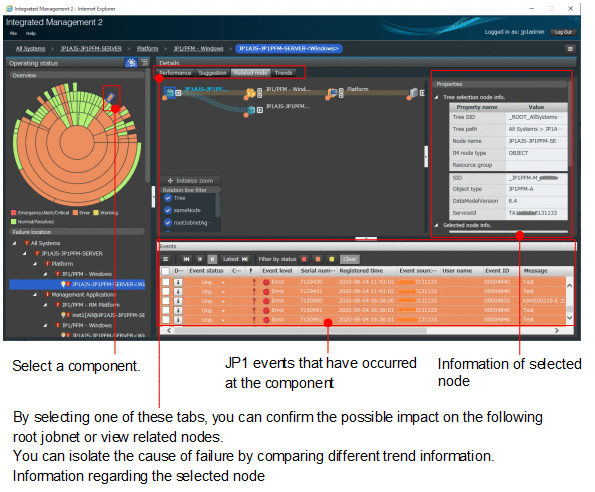

Figure 1‒14: Troubleshooting with JP1/IM - Manager (Intelligent Integrated Management Base)

For the Central Console, you can select a JP1 event in its Event Console window to view the event details. You can also directly launch related applications when needed.

Non-JP1 applications required in managing system operations can also be registered, creating an integrated workflow based on JP1/IM - Manager.

Figure 1‒15: Error investigation with JP1/IM - Manager
