A.1 Mapping one-byte codes

The following table describes the mapping for conversion of halfwidth codes for Code Converter.

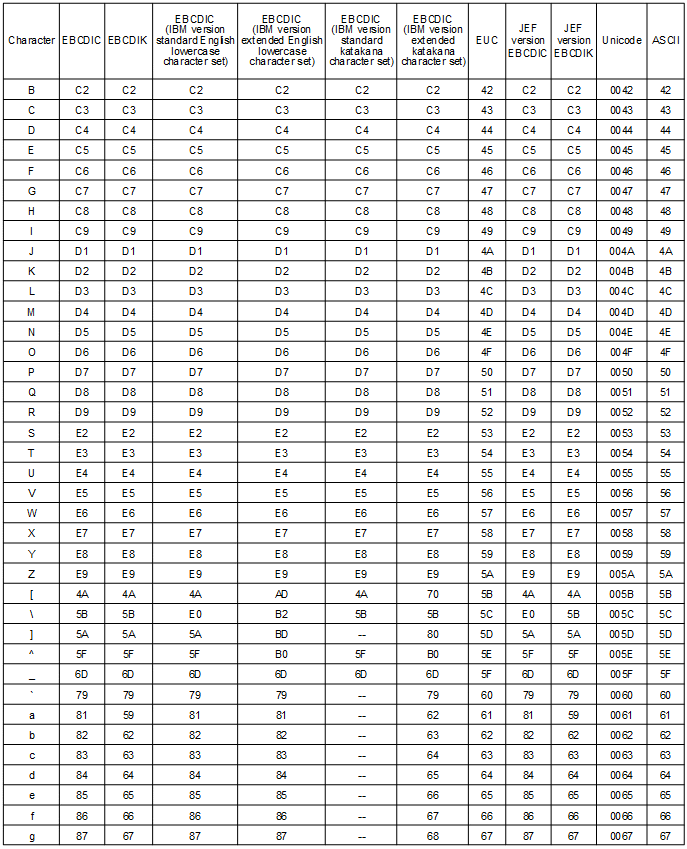

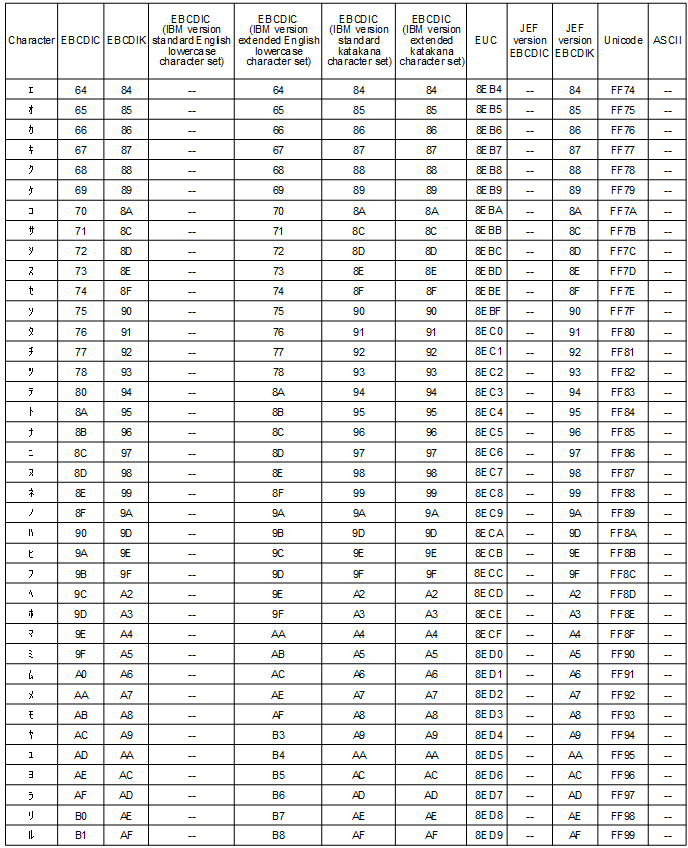

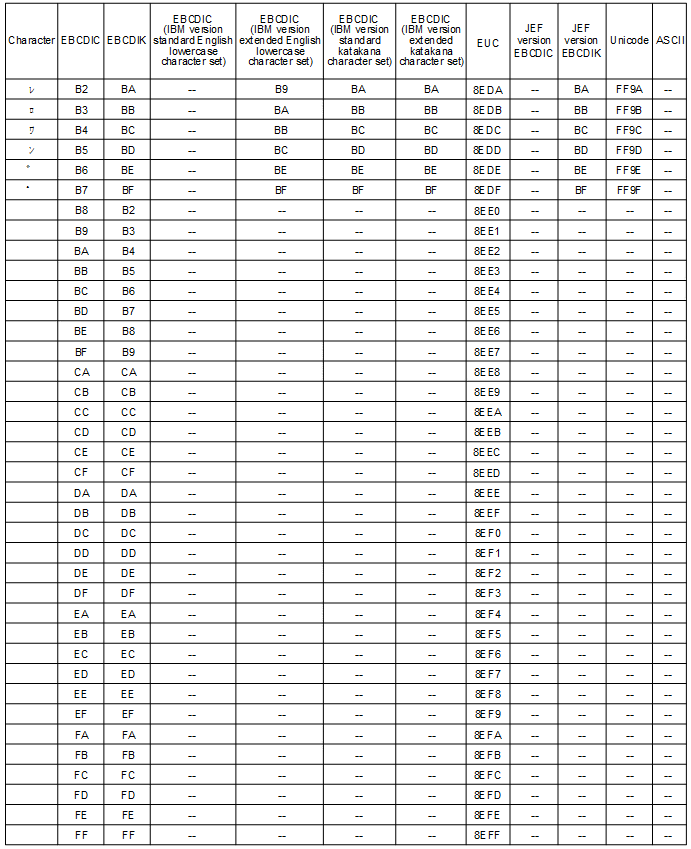

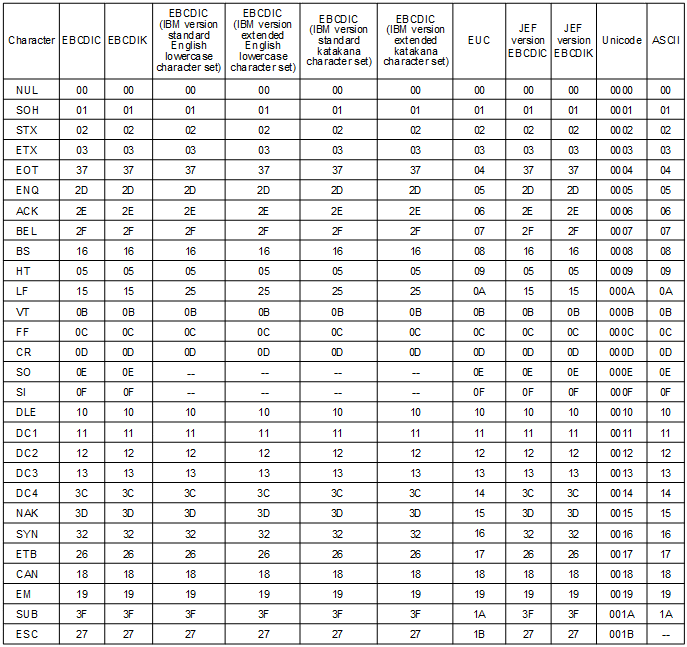

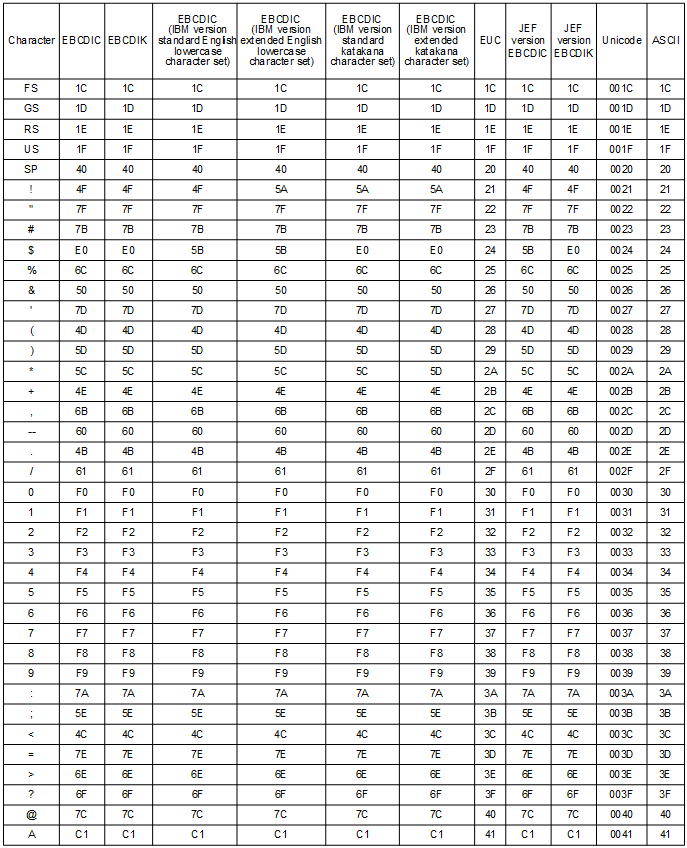

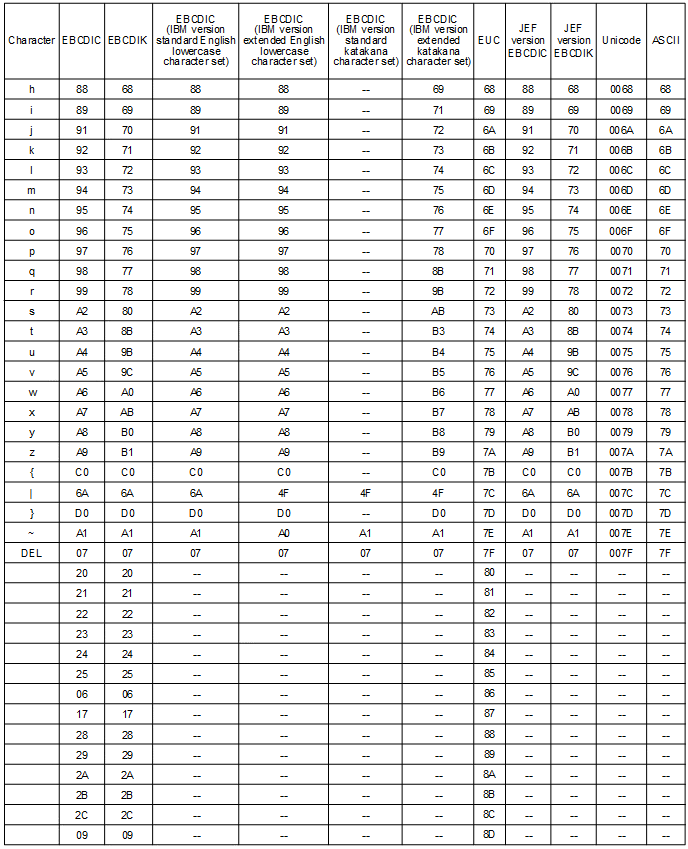

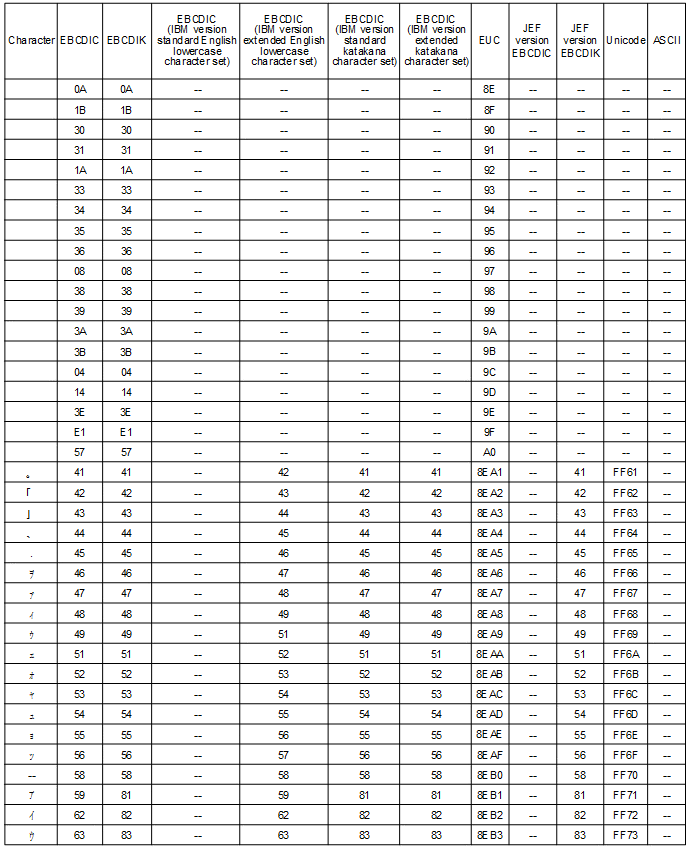

Figure A‒1: Mapping for one-byte code conversion

Legend:

--: No applicable characters

Note 1

Codes EBCDIC and EBCDIK (KEIS version) support the standard version.

In the standard version, (5D)₁₆ becomes (4F)₁₆ and (21)₁₆ becomes (5A)₁₆.

Note 2

With EBCDIC and EBCDIK (KEIS version), (0A)₁₆ is treated as a code for switching between one- and two-byte codes.

Note 3

With EBCDIC (IBM version), (0E)₁₆ and (0F)₁₆ are treated as codes for switching between two-byte and one-byte codes.

Note 4

With EBCDIC (JEF version) and EBCDIK (JEF version), (28)₁₆, (29)₁₆, and (38)₁₆ are treated as codes for switching between one- and two-byte codes.

For output, only (28)₁₆ and (29)₁₆ are treated as codes for switching between one- and two-byte codes.
