4.4.2 Service adapter operations

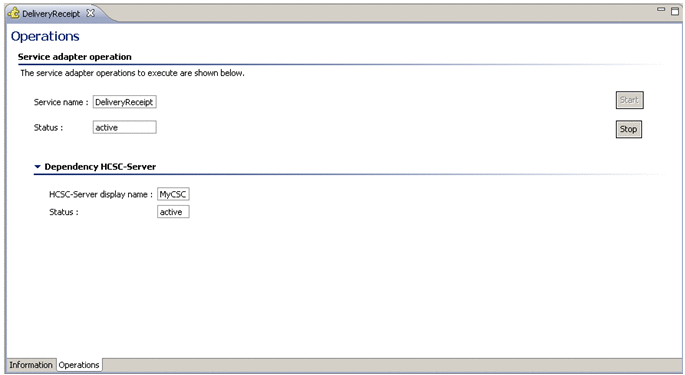

The following figure shows the Operations page for service adapters and the items displayed on the page:
|
|
![[Figure]](GRAPHICS/ZS031000.GIF)
- Service name
-
Displays the service name of the service adapter on which you are performing operations using this window.
- Status
-
Displays the operating status of service adapters. Displays one of the following:
-
inactive
-
active
-
stopping
-
starting
-
stop error
-
start error
-
acquisition error
-
pre-deployment status
Even in cases other than starting or stopping of service adapters, the status might change with reporting from the execution environment.
-
- Dependency HCSC-Server
-
Displays the information about the dependent HCSC server.
- HCSC-Server display name
-
Displays the display name of the dependent HCSC server.
- Status
-
Displays the operating status of the HCSC server on which service adapters are deployed. Displays one of the following:
-
inactive
-
active
-
stopping
-
starting
-
acquisition error
Even in cases other than starting or stopping of service adapters, the status might change with reporting from the execution environment.
-
- Start button
-
The service adapter will now start.
- Stop button
-
The service adapter will now stop.
