4.4.1 HCSC server operations

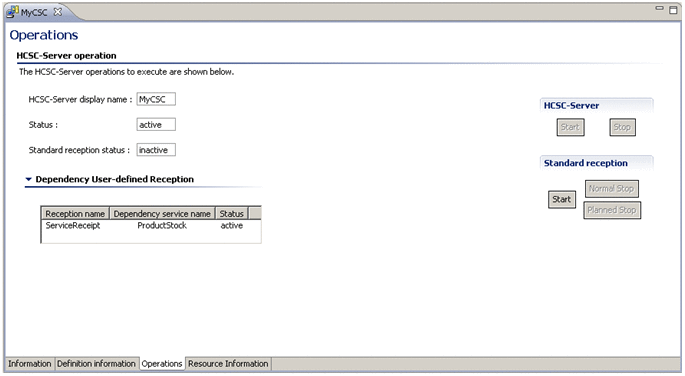

The following figure shows the Operations page for the HCSC server and the items displayed on the page:
|
|
![[Figure]](GRAPHICS/ZS030800.GIF)
- HCSC-Server display name
-
Displays the display name of the HCSC server on which you are performing operations using this window.
- Status
-
Displays the operating status of the HCSC server. Displays one of the following:
-
inactive
-
active
-
stopping
-
starting
-
acquisition error
Even in cases other than starting or stopping of the HCSC server, the status might change with the reporting from the execution environment.
-
- Standard reception status
-
Displays the operating status of the standard reception. Displays one of the following:
-
inactive
-
active
-
stopping
-
starting
-
stop error
-
start error
-
acquisition error
Even in cases other than starting or stopping of standard reception, the status might change with the reporting from the execution environment.
-
- Dependency User-Defined Reception
-
Displays the status of the user-defined reception dependent on the HCSC server, in a list.
- Reception name
-
Displays the name of the dependent user-defined reception.
- Dependency service name
-
Displays the service name on which the user-defined reception depends. A hyphen (-) is displayed for the user-defined reception (invocation target specified).
- Status
-
Displays the status of the dependent user-defined reception. Displays one of the following:
-
inactive
-
active
-
stopping
-
starting
-
stop error
-
start error
-
acquisition error
-
- HCSC-Server
-
- Start button
-
The HCSC-Server will now start.
- Stop button
-
The HCSC-Server will now stop.
- Standard reception
-
- Start button
-
Start the standard reception.
- Normal Stop button
-
Terminate the standard reception. Use this button to stop the standard reception during normal operations.
- Planned Stop button
-
Terminate the standard reception. Use this button to cancel HCSC server setup.
