4.2.4 User-defined reception basic information

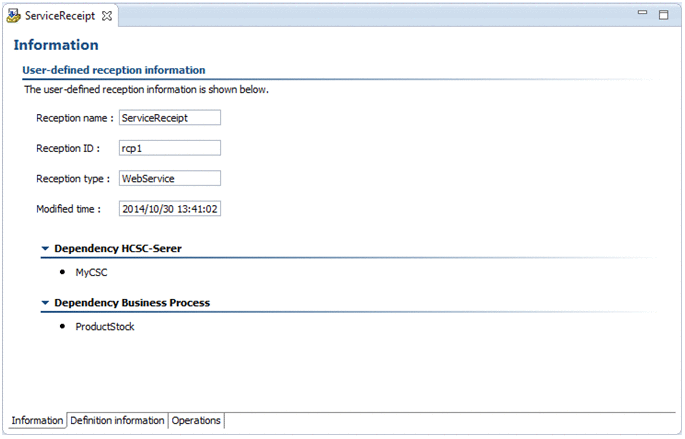

The User-defined reception information page displays the basic information about the user-defined reception and enables you to check the user-defined reception settings. The following figure shows the User-defined reception information page and the items displayed on the page:
|
|
![[Figure]](GRAPHICS/ZS030500.GIF)
- Reception name
-
Displays the reception name of the user-defined reception.
- Reception ID
-
Displays the reception ID of the user-defined reception.
- Reception type
-
Displays the reception type of the user-defined reception. Either of the following type is displayed.
-
Web Service
-
Custom
-
- Modified time
-
Displays the date and time when the user-defined reception was last updated. If the acquisition of the basic information fails, acquisition error is displayed, and - is displayed before the deployment of the user-defined reception.
- Dependency HCSC-server
-
Displays the display name of the dependent HCSC server.
- Dependency Business Process
-
Displays the service name of the dependent business process. A hyphen (-) is displayed for the user-defined reception (invocation target specified).
