4.2.3 Service adapter basic information

The Information page for a service adapter displays the basic information about the service adapter and enables you to check the service adapter settings. The following figure shows the Information page for service adapters and the items displayed on the page:

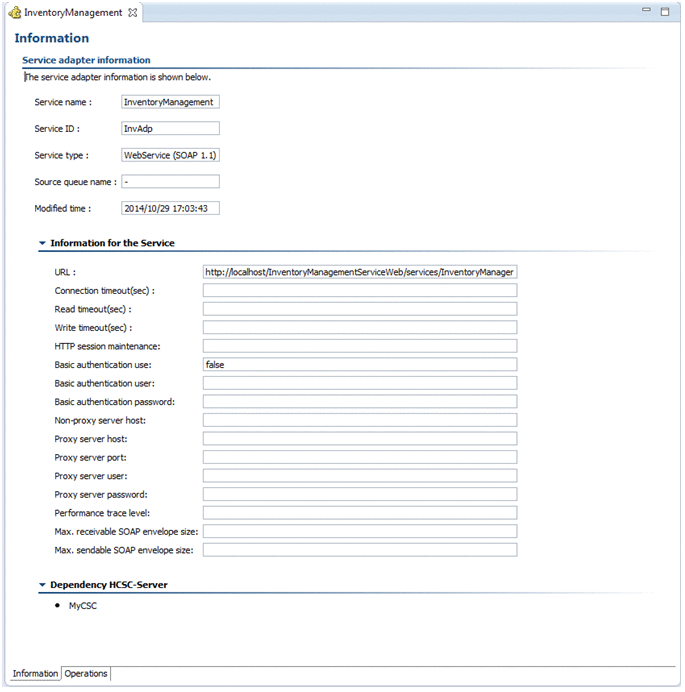

Figure 4‒4: Information page for service adapters (When the service type is Web Service)

Service name

Displays the service name of the service adapter.

Service ID

Displays the service ID of the service adapter.

Service type

Displays the service type of the service adapter. Displays any one of the following types:

• Web Service (SOAP1.1)

• Web Service (SOAP1.2)

• SessionBean

• MDB (WS-R)

• MDB (DBQ)

• Custom adapter

Source queue name

In the case of an asynchronous adapter, displays the name of the queue used by the service adapter. - is displayed before the service adapter is deployed.

Modified time

Displays the date and time when the deployed service adapter was last updated. If the acquisition of the basic information fails, acquisition error is displayed and - is displayed before the service adapter is deployed.

Information for the Service

Displays the information according to the service types.

The following table lists and describes the service types and the corresponding service information:

Table 4‒3: Items displayed for the service information corresponding to service types

Service type	Service information
	Item	Meaning
Web Service (SOAP1.1) Web Service (SOAP1.2) SessionBean	URL	Displays the Web Service URL.
	Connection timeout(sec)	Displays a connection timeout value of the socket during the service module call
	Read timeout(sec)	Displays a reading timeout value of the socket during the service module call
	Write timeout(sec)	Displays a writing timeout value of the socket during the service module call
	HTTP session support	Specify whether to support the HTTP session. true Support session. false Do not support session.
	Check if basic authentication is required	Displays whether the service adapter uses basic authentication. One of the following is displayed: true Used. false Not used.
	Basic authentication user	Displays The value has already been set., if the basic authentication user ID is set up.
	Basic authentication password	Displays The value has already been set., if the basic authentication password is set up.
	Non-proxy server host	Displays the host name or IP address to be used when the proxy server is not used.
	Proxy server host	Displays the host name or IP address of the proxy server.
	Proxy server port	Displays the port number of the proxy server.
	Proxy server user	Displays The value has already been set., if the authentication user ID is set up for the proxy server.
	Proxy server password	Displays The value has already been set., if the password corresponding to the authentication user ID is set up for the proxy server.
	Performance trace level	Displays whether the performance analysis trace is output. One of the following is displayed: ALL The performance analysis trace is output at trace collection points. NONHANDLER The performance analysis trace is not output at trace collection points. For details about trace collection points, see the description of client definition file settings in the manual Application Server SOAP Application Development Guide.
	Max. receivable SOAP envelope size	Displays the maximum number of bytes that can be received for SOAP envelope.
	Max. sendable SOAP envelope size	Displays the maximum number of bytes that can be sent for a SOAP envelope.
	URL	Displays URL of Web Service.
	Connection timeout [seconds]	Displays a connection timeout value of the socket during the service module call.
	Read timeout [seconds]	Displays a reading timeout value of the socket during the service module call.
	HTTP session support	Specify whether to support the HTTP session. true Support session. false Do not support session.
	Check if basic authentication use is required	Displays whether the service adapter uses basic authentication. Displays one of the following: true Used. false Not used.
	Basic authentication user	Displays The value has already been set., if the basic authentication user ID is set up.
	Basic authentication password	Displays The value has already been set., if the basic authentication password is set up.
	URL	Displays the Naming Service URL.
	Lookup name	Displays a name of the service module that is registered in the JNDI name space and that is to be invoked.
	EJB call timeout	Displays a timeout value of business method call during the service module call
	Performance trace level	Displays whether the performance analysis trace is output. One of the following is displayed: ALL The performance analysis trace is output at trace collection points. NONHANDLER The performance analysis trace is not output at trace collection points. For details about trace collection points, see the description of client definition file settings in the manual Application Server SOAP Application Development Guide.
MDB (WS-R)	Sender queue name	Displays the queue name to which a service adapter sends messages.
	Call settings	Displays whether to connect to service components of the remote host or to service components of the local host. When connecting to service components of the remote host, Remote Call is displayed. When connecting to service components of the local host, Local Call is displayed.
	URL	Displays the message transfer destination URL for the transmit queue used by service adapters. If Call Settings is Local Call, nothing is displayed.
	The number of the maximum messages	Displays the maximum number of messages that you can store in the transmit queue used by service adapters. If Call Settings is Local Call, nothing is displayed.
	Order guarantee	Displays whether to guarantee that the transmit queue used by the service adapter transmits messages in the correct order. One of the following is displayed: ON Order is guaranteed. OFF Order is not guaranteed. If Call Settings is Local Call, nothing is displayed.
	RD area for creating a transmit queue	Displays name of the RD area for creating a transmit queue used by service adapters. If Call Settings is Local Call, nothing is displayed.
MDB (DBQ)	Sender queue name	Displays the queue name associated with service components.

Dependency HCSC-server

Displays the display name of the dependent HCSC server.
