1.6.17 Export Mapping Definition dialog box
Use the Export Mapping Definition dialog box to export mapping information defined with the mapping definition editor to a table format XML file.
The Export Mapping Definition dialog box opens when you right-click anywhere in the mapping viewer in the Data Transformation Definition window, and then click Export Mapping Definition.

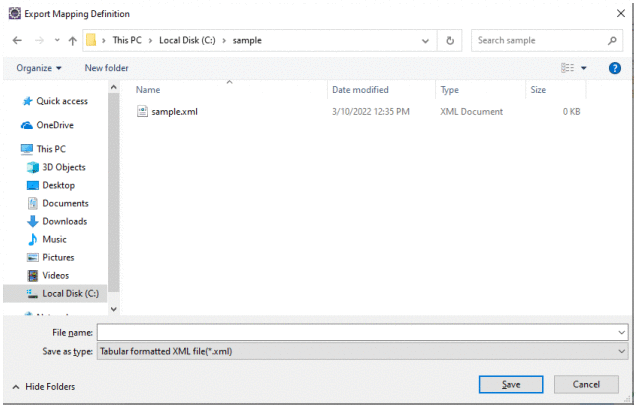

The following shows the Export Mapping Definition dialog box.
|
|
![[Figure]](GRAPHICS/ZS017170.GIF)
- Organization of this subsection
(1) Displayed items
- File name
-
Specify the name of the table format XML file to be exported.
- File type
-
Select Table format XML file (*.xml).
- Save button
-
Displays the dialog box for starting the export of the mapping definition.
- Cancel button
-
Cancels the specified settings and closes the dialog box.
(2) Operations that can be performed in this dialog box
In the Export Mapping Definition dialog box, you can export the defined mapping to a table format XML file. For details about how to export the mapping definition by using Excel, see the manual Service Platform Basic Development Guide.
