1.6.1 Settings for Source Schema File dialog box
In the Settings for Source Schema File dialog box, you can specify the source schema file when performing N-to-one data transformation.
This dialog box opens when you perform one of the following operations:
-
In the Settings for Source and Target Schema File page of the new mapping definition file wizard, select the N-to-one transformation radio button, and then click the Add or Edit button.
-
When you create an N-to-one data transformation definition, click the Edit button in the Settings for Source and Target Schema File dialog box.

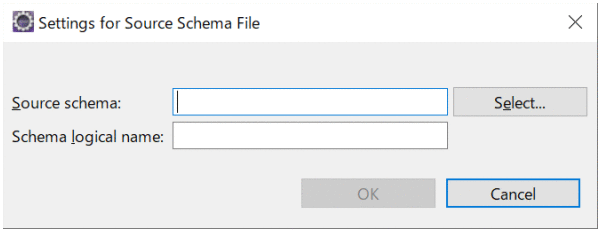

Figure 1‒100: Settings for Source Schema File dialog box ![[Figure]](GRAPHICS/ZS016510.GIF)
- Organization of this subsection
(1) Displayed items
- Source schema
-
Specify the file path of the source schema.
- Select button
-
Displays the dialog box for selecting a source schema file.
- Schema logical name
-
Specify a schema logical name that is unique within the source schema.
- OK button
-
After validation of the specified settings, saves the settings and then closes the dialog box.
- Cancel button
-
Cancels the specified settings and closes the dialog box.
(2) Operations that can be performed in this dialog box
In the Settings for Source Schema File dialog box, you can add or change source schema files used for N-to-one data transformation. For details about how to define data transformation, see 6.3.1 Procedure for Defining Data Transformation in the Service Platform Basic Development Guide.
