1.4.13 Assign Activity Sub Dialog
You use this dialog for adding or editing the Copy source and Copy destination to be defined in the Assign Activity dialog.
This dialog opens when you perform one of the following operations:
-
Click Add in the Assign Activity dialog
-
Click Edit in the Assign Activity dialog
For details about how to define assign activity, see the description of the assign activity in the manual Service Platform Basic Development Guide.
|
|

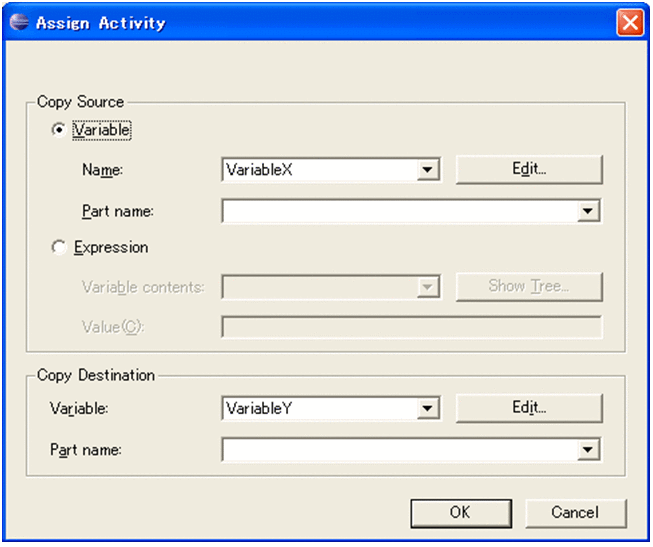

![[Figure]](GRAPHICS/ZS015300.GIF)
- Copy source
-
Using the items listed below, specify the value to be specified in Copy Source of the Assign Activity dialog.
- Variable radio button
-
Click this button to specify a variable in Copy Source, using a variable name or a variable name and a part name.
- Name
-
From the drop-down list, select the variable name to be specified in Copy Source. The drop-down list shows only the variables that can be used of those defined in the List Of Variables And Correlation Sets dialog.
- Edit button
-
The Variable-Correlation Set dialog opens. Click this button to edit the contents of the variable specified in Name.
For details about the List Of Variables And Correlation Sets dialog, see 1.4.1 List Of Variables And Correlation Sets Dialog.
- Part name
-
When the variable selected in Name is message type, you can select a part name from the drop-down list. The drop-down list shows only the part names specified for the variable selected in Name.
- Expression radio button
-
Select this radio button to specify a value (number, string, or Boolean value) or part of a message-type variable in the absolute path (in XPath) in Copy source.
- Variable contents
-
To use a variable in Expression in Copy source, select the variable name to be displayed from the drop-down list. The drop-down list shows only the variables that can be used of those defined in the List Of Variables And Correlation Sets dialog.
- Display button
-
Click to open the Showing Variable dialog. In the Showing Variable dialog, you can select the contents to be specified for the copy source from the contents of a variable of the message type specified in Variable contents, and acquire an absolute path (in XPath).
For details about the Showing Variable dialog, see 1.4.4 Showing Variable Dialog.
- Value
-
To specify a number, string, or Boolean value in Copy source, specify the respective value.
The value to be specified differs depending on whether a message-type or non-message-type variable was selected in Variable contents. For details about the value to be specified, see the manual Service Platform Basic Development Guide.
- Copy destination
-
Using the items listed below, specify the value to be specified in Copy Destination in the Assign Activity dialog.
- Variable
-
From the drop-down list, select the variable name to be specified in Copy Destination. The drop-down list shows only the variables that can be used of those defined in the List Of Variables And Correlation Sets dialog.
- Edit button
-
The Variable-Correlation Set dialog opens. Click this button to edit the contents of the variable specified in Variable.
For details about the List Of Variables And Correlation Sets dialog, see 1.4.1 List Of Variables And Correlation Sets Dialog.
- Part name
-
When the variable selected in Variable is message type, you can select a part name from the drop-down list. The drop-down list shows only the part names specified for the variable selected in Variable.
- OK button
-
Commits the defined contents to the Assign Activity dialog and closes the dialog.
- Cancel button
-
Closes the dialog without committing the defined contents to the Assign Activity dialog.
