1.4.6 Fault Handler Dialog

Use this dialog to specify fault-handling conditions.

This dialog opens when you perform one of the following operations:

Double-click a link line (set by using a fault connection).
Select and right-click a link line (set by using a fault connection), and then click Set.

For details about operating methods, see the description of fault-handling definitions in the manual Service Platform Basic Development Guide.

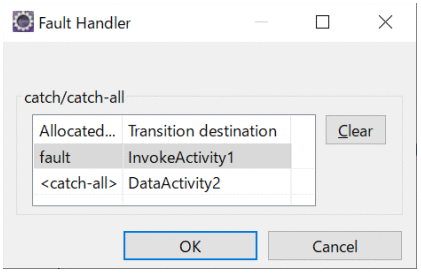

Figure 1‒71: Fault Handler dialog

Allocated variable

In the list box, select the variable subject to fault handling. The list shows the variables defined for the applicable business process.

To specify fault handling to be executed when an undefined fault occurs, choose catch-all in the list.

Transition destination

Select the name of the activity for which fault handling is defined to be executed when the fault specified in Allocated variable occurs.

Clear button

Clears the contents specified for the selected Allocated variable line.

OK button

Saves the defined contents and closes the dialog.

Cancel button

Closes the dialog without saving the defined contents.
