1.1.2 Configuration of the window for creating HCSC components and defining data transformation

The following window is used to create HCSC components and define data transformation. The following describes the configuration of the window.

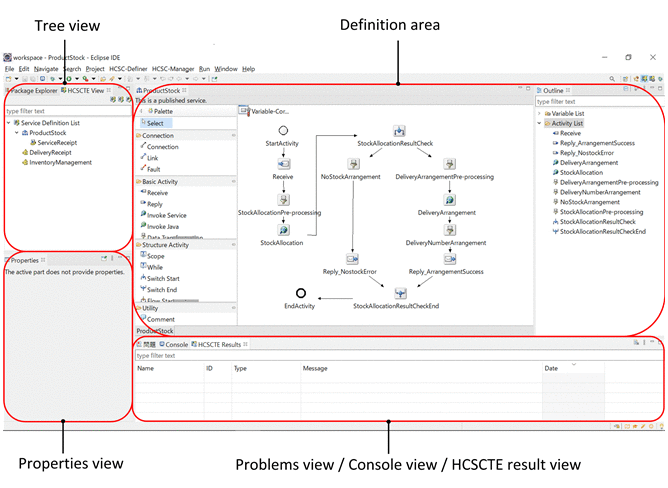

Figure 1‒2: Configuration of the window for creating HCSC components and defining data transformation

Tree view

Displays a service definition list, a published services list, and a system configuration list.

You can filter the items displayed in the tree view by entering an item name in the text box at the top of the tree view.

Definition area

Displays one of the following definition windows and information display windows according to the operation:

• Service adapter definition window

• Business Process Definition window

• Data Transformation Definition window

• User-Defined Reception Definition window

• HCSC Component Information Display window

• User-Defined Reception Information Display window

For details about each window, see 1.2 Definition windows and information display windows.

Properties view

Displays the information about the HCSC components defined in the definition area.

Problems view

Displays a list of problems when the validation of HCSC components and data transformation definitions detects a problem.

Console view

Displays the following information:

• Output time in [yyyy/MM/dd HH:mm:ss] format

• Error information

• Validation results

HCSCTE result view

Displays the following information as a result of processing that causes validation, packaging, publication, and disassociation:

• Service name

• Service type

• Message
