1.1.1 Configuration of the window for creating binary format definition files

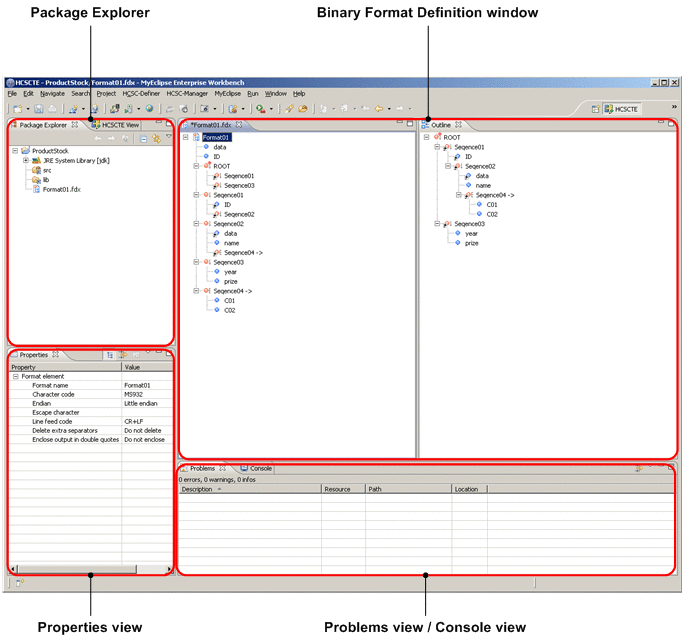

The following window is used to define elements for binary format definition files created by using a wizard. The following describes the configuration of the window.
|
|
![[Figure]](GRAPHICS/ZS010100.GIF)
- Package Explorer
-
Displays a list of binary format definition files.
- Binary Format Definition window
-
You use this window for defining the contents of binary format definition files. It consists of the Binary Format Definition Editor and an outline view.
For details about the Binary Format Definition window, see 1.2.1 Binary Format Definition Window.
- Properties view
-
Displays the information about the binary format definition files defined in the Binary Format Definition window and information about various elements.
- Console view
-
Displays the validation results of binary format definition files.
- Problems view
-
Displays a list of problems when the validation of binary format definition files detects problems.
- Reference note
-
Depending on the Eclipse perspective, some of the views may not be displayed in their initial states. In this case, on the Eclipse Window menu, choose Show Views, and open the necessary view.
