7.4.5 Activity trace

In the development environment, activity traces can be output. You can identify the processing flow of each activity from activity traces.

The following shows the targets of activity traces and the times at which activity traces are output:

Target business processes:

Activity traces are output for all business processes. You cannot specify business processes for which activity traces are to be output.

Target activities:

The traces of all activities except the following are output:

Switch End activity
Flow End activity

Times at which to output activity traces:

Output of an activity trace starts when an activity is invoked.

This section describes the output destination of activity traces and the items to be output, and shows an example of using activity traces. For details about how to collect activity traces, see 7.3.2(5) Collecting activity traces.

Organization of this subsection

(1) Output destination of activity traces
(2) Output format and output items of an activity trace
(3) Example of an activity trace that is output
(4) Example of using an activity trace

(1) Output destination of activity traces

The following table shows the output destination and file name of activity traces.

Table 7‒51: Output destination and file name of activity traces
Trace output destination path	Trace file name
<Log output directory of J2EE server>\csc	`cscbp_activity_trc_HCSC-server-name_N.log`

You can change the log output directory of the J2EE server by using the ejb.server.log.directory key in the usrconf.cfg file (option definition file for the J2EE server). For details about the usrconf.cfg file, see 2.2.2 usrconf.cfg (Option definition file for J2EE servers) in the manual Application Server Definition Reference Guide.

You can change the number of trace files, the file size, and the items to be output by using the following properties in the HCSC server runtime definition file:

bpacttrace-filenum=number-of-activity-trace-files-for-business-processes
bpacttrace-filesize=size-of-an-activity-trace-file-for-business-processes
bpacttrace-extend-item=additional-output-items

For details about the activity trace properties, see 6.5.6 HCSC server runtime definition file in the Service Platform Reference Guide.

To Page Top

(2) Output format and output items of an activity trace

(a) Output format

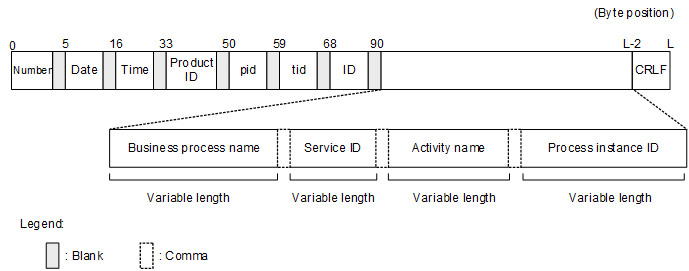

The following figure shows the output format of an activity trace.

Figure 7‒30: Output format of an activity trace

(b) Output items

The following table shows the items that are output in an activity trace.

Table 7‒52: Items that are output in an activity trace
Item	Contents
Number	The sequence number of each activity trace is output.
Date	The date on which the activity trace was collected is output in `YYYY/MM/DD` format: `YYYY`: Four-digit year `MM`: Month number `DD`: Day
Time	The time at which the activity trace was collected is output in `hh:mm:ss.SSS` format: `hh`: Hour `mm`: Minute `ss`: Second `SSS`: Millisecond The time is output in local time at the millisecond precision.
Product ID	The string `CSCBP` is output as a product identifier.
pid	The identifier of each process is output.
tid	The identifier of each thread is output.
ID	Blank
Business process name	The business process name is output as set in the development environment.
Service ID	The service ID of the business process is output as set in the development environment.
Activity name	The name of each activity is output.
Process instance ID	The identifier of each process instance is output. This item is output only if `PROCESSINSTANCEID` is specified for the `bpacttrace-extend-item` property in the HCSC server runtime definition file. For details, see 6.5.6 HCSC server runtime definition file in the Service Platform Reference Guide.
CRLF	The record end code is output.

To Page Top

(3) Example of an activity trace that is output

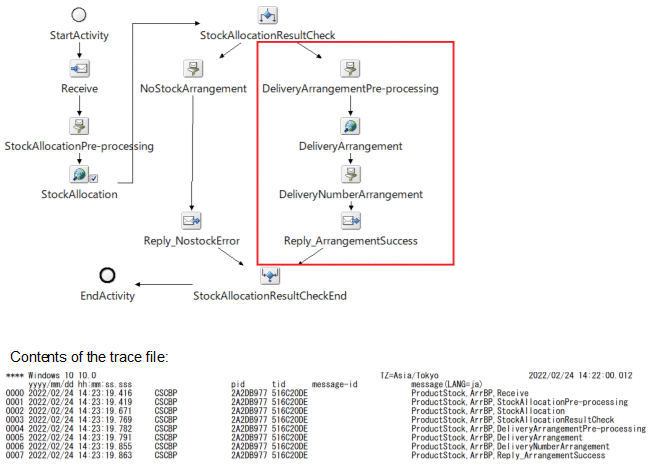

The following shows an example of an activity trace that is output:

[Figure]

In the preceding example, you can see that the processes enclosed in a red rectangle were performed after the processing flow branched at the StockAllocationResultCheck node.

To Page Top

(4) Example of using an activity trace

An activity trace that has been output consists of the traces of multiple business processes. This example shows how to identify a unique request in an activity trace.

Case where the activity is not defined after response:

The thread identifier (tid) is unique information in each request. In this case, identify the request based on the thread identifier that has been output in the activity trace.

Case where the activity is defined after response:

The process instance ID is unique information in each request. In this case, identify the request based on the process instance ID that has been output in the activity trace.

To output process instance IDs in activity traces, specify PROCESSINSTANCEID for the bpacttrace-extend-item property in the HCSC server runtime definition file. For details, see 6.5.6 HCSC server runtime definition file in the Service Platform Reference Guide.
