7.4.3 Performance Analysis Trace

(a) Output format

The format that is output in the performance analysis trace file is same as that of the performance analysis trace of the J2EE server. For details about the performance analysis trace file, see "7.3 Collecting the trace based performance analysis file by using Management Server" in "Application Server Maintenance and Migration Guide".

(b) Output contents

For HCSC server (Messaging infrastructure)

The following table lists and describes the content that is output to the performance analysis trace file:

Table 7‒24:  Contents output to the performance analysis trace file (messaging infrastructure)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(a) For HCSC server (Messaging infrastructure).
Return code		The type of collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name is output.
Operation name		Method name is output.
Option information	Message common ID	The request identification information (parent ID) is output.
	Service request ID	The request identification information (child ID) is output.
	Additional information	The additional information specific to the output destination is output.

For HCSC server (business process infrastructure)

The following table lists and describes the content that is output to the performance analysis trace file:

Table 7‒25:  Content output to the performance analysis trace file (business process infrastructure)

Item	Content
Event ID	The Event ID of the collection point is output. For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(b) For HCSC server (Business process infrastructure).
Return code	The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name	Any of the following names is displayed: Business process definition name Java class name Data Transform Service name For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(b) For HCSC server (Business process infrastructure).
Operation name	Is not output.
Option information	Option information is output. For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(b) For HCSC server (Business process infrastructure).

For HCSC server (Database adapter)

The following table lists and describes contents output to the performance analysis trace file:

Table 7‒26:  Contents output to the performance analysis trace file (Database adapter)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(c) For HCSC server (Database adapter).
Return code		The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name is output. Package name is not displayed.
Operation name		Method name is output.
Option information	Message common ID	The request identification information (parent ID) is output. Value becomes null when the information is not set.
	Service request ID	The request identification information (child ID) is output. Value becomes null when the information is not set.
	Additional information	Individual information is output.

For HCSC server (data transformation infrastructure)

The following table lists and describes contents output to the performance analysis trace file:

Table 7‒27:  Content output to the performance analysis trace file (Data transformation infrastructure)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(d) In HCSC server (data transformation infrastructure).
Return code		The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name is output.
Operation name		Method name is output.
Option information	Message common ID	The request identification information (parent ID) is output.
	Service request ID	The request identification information (child ID) is output.
	Additional information	The additional information specific to the output destination is output.

For HCSC server (component-common UOC)

The following table lists and describes contents output to the performance analysis trace file.

Table 7‒28:  Content output to the performance analysis trace file (component-common UOC)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the applicable performance analysis trace collection point table in 7.4.3(3)(e) For HCSC server (component-common UOC).
Return code		The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name of UOC class is output.
Operation name		Method name of UOC class is output.
Option information	Message common ID	The request identification information (parent ID) is output.
	Service request ID	The request identification information (child ID) is output.
	Additional information	Option information is output. For details, see "7.4.3(3)(e) For HCSC server (component-common UOC)".

(a) For HCSC server (Messaging infrastructure)

Performance analysis trace files are output at the following times, and the trace collection point for each time is different:

• When executing individual services (without JSON-XML transformation)

• When executing individual services (with JSON-XML transformation)

• When executing business process services

• When executing database access

• When executing file access

• When using user-defined receptions (custom receptions)^#

#

For details about the collection points when using user-defined receptions (custom receptions), see A.8 Acquiring the failure information (Custom reception) in the Service Platform Reception and Adapter Definition Guide.

The following describes collection points:

When executing individual services (without JSON-XML transformation)

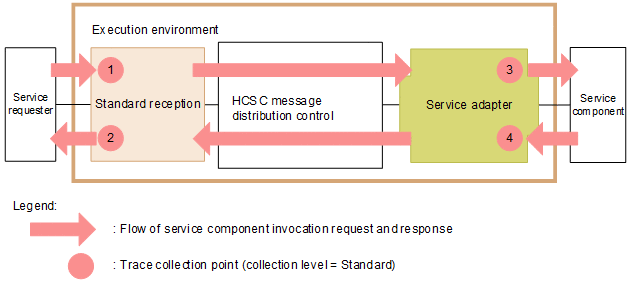

The following figure shows the trace collection point of the performance analysis trace when executing individual services:

Figure 7‒11:  Trace collection point of the performance analysis trace (when executing individual services (without JSON-XML transformation))

The following table lists the event ID, trace collection point, and performance analysis trace collection level. The numbers in the Number in figure column of the following table correspond to the circled numbers in the preceding figure.

Table 7‒29:  Performance analysis trace collection point (when executing individual services (without JSON-XML transformation))

Event ID	Number in figure	Trace collection point	Level
0x9800	1	Entry to standard reception (Web Services)	A
0x9801	2	Exit from standard reception (Web Services)	A
0x9802	1	Entry to standard reception (SessionBean)	A
0x9803	2	Exit from standard reception (SessionBean)	A
0x9804	1	Entry to standard reception (MDB(WS-R))	A
0x9805	2	Exit from standard reception (MDB(WS-R))	A
0x9806	1	Entry to standard reception (MDB(DB queue))	A
0x9807	2	Exit from standard reception (MDB(DB queue))	A
0x9810	3	Invocation of service components of SOAP adapter	A
0x9811	4	Point for receiving response from service components of SOAP adapter	A
0x9812	3	Invocation of service components of SessionBean adapter	A
0x9813	4	Point for receiving response from service components of SessionBean adapter	A
0x9814	3	Invocation of service components of MDB (WS-R) adapter	A
0x9815	4	Point for receiving response from service components of MDB (WS-R) adapter	A
0x9816	3	Invocation of service components of MDB (DB queue) adapter	A
0x9817	4	Point for receiving response from service components of MDB (DB queue) adapter	A
0x9818	3	Invocation of service components of service adapters(CUSTOM) other than those mentioned above	A
0x9819	4	Point for receiving response from service components of service adapters(CUSTOM) other than those mentioned above	A

Legend:

A: Indicates the "Standard" level.

When executing individual services (with JSON-XML transformation)

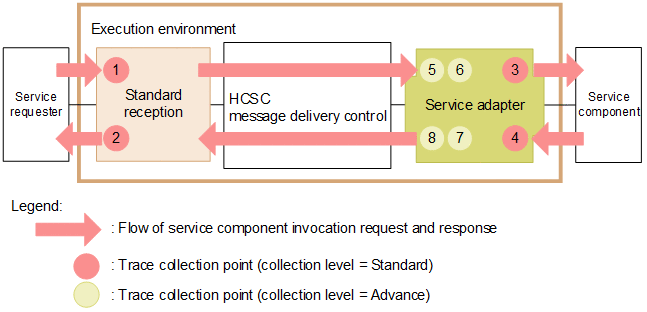

The following figure shows the trace collection point of the performance analysis trace when executing individual services:

Figure 7‒12: Trace collection point of the performance analysis trace (when executing individual services (with JSON-XML transformation))

The following table lists the event ID, trace collection point, and performance analysis trace collection level. The numbers in the Number in figure column of the following table correspond to the circled numbers in the preceding figure.

Table 7‒30: Performance analysis trace collection point (when executing individual services (with JSON-XML transformation))

Event ID	Number in figure	Trace collection point	Level
0x9800	1	Entry to standard reception (Web Services)	A
0x9801	2	Exit from standard reception (Web Services)	A
0x9802	1	Entry to standard reception (SessionBean)	A
0x9803	2	Exit from standard reception (SessionBean)	A
0x9804	1	Entry to standard reception (MDB(WS-R))	A
0x9805	2	Exit from standard reception (MDB(WS-R))	A
0x9806	1	Entry to standard reception (MDB(DB queue))	A
0x9807	2	Exit from standard reception (MDB(DB queue))	A
0x9810	3	Invocation of service components of SOAP adapter	A
0x9811	4	Point for receiving response from service components of SOAP adapter	A
0x9812	3	Invocation of service components of SessionBean adapter	A
0x9813	4	Point for receiving response from service components of SessionBean adapter	A
0x9814	3	Invocation of service components of MDB (WS-R) adapter	A
0x9815	4	Point for receiving response from service components of MDB (WS-R) adapter	A
0x9816	3	Invocation of service components of MDB (DB queue) adapter	A
0x9817	4	Point for receiving response from service components of MDB (DB queue) adapter	A
0x9818	3	Invocation of service components of service adapters(CUSTOM) other than those mentioned above	A
0x9819	4	Point for receiving response from service components of service adapters(CUSTOM) other than those mentioned above	A
0x982a	5#	Point for invoking JSON-XML transformation in the custom adapter development framework (request message)	B
0x982b	6#	Point for receiving a response from JSON-XML transformation in the custom adapter development framework (request message)	B
0x982c	7#	Point for invoking JSON-XML transformation in the custom adapter development framework (response message)	B
0x982d	8#	Point for receiving a response from JSON-XML transformation in the custom adapter development framework (response message)	B

Legend:

A: Indicates the "Standard" level.

B: Indicates the Advance level.

#

This trace collection point is used only when JSON-XML transformation is performed in the custom adapter development framework.

When executing business process services

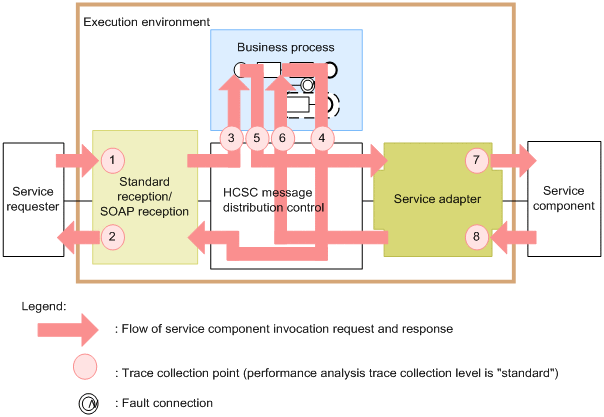

The following figure shows the trace collection point of the performance analysis trace when executing business process services:

Figure 7‒13: Trace collection point of the performance analysis trace (when executing business process services)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure 7-13 Trace collection point of the performance analysis trace (when executing business process services)".

Table 7‒31:  Performance analysis trace collection point(when executing business process services)

Event ID	Number in figure	Trace collection point	Level
0x9800	1	Entry to standard reception (Web Services)	A
0x9801	2	Exit from standard reception (Web Services)	A
0x9802	1	Entry to standard reception (SessionBean)	A
0x9803	2	Exit from standard reception (SessionBean)	A
0x9804	1	Entry to standard reception (MDB(WS-R))	A
0x9805	2	Exit from standard reception (MDB(WS-R))	A
0x9806	1	Entry to standard reception (MDB(DB queue))	A
0x9807	2	Exit from standard reception (MDB(DB queue))	A
0x9808	1	Entry to SOAP reception	A
0x9809	2	Exit from SOAP reception	A
0x9810	7	Invocation of service components of SOAP adapter	A
0x9811	8	Point for receiving response from service components of SOAP adapter	A
0x9812	7	Invocation of service components of SessionBean adapter	A
0x9813	8	Point for receiving response from service components of SessionBean adapter	A
0x9814	7	Invocation of service components of MDB (WS-R) adapter	A
0x9815	8	Point for receiving response from service components of MDB (WS-R) adapter	A
0x9816	7	Invocation of service components of MDB (DB queue) adapter	A
0x9817	8	Point for receiving response from service components of MDB (DB queue) adapter	A
0x9818	7	Invocation of service components of service adapters(CUSTOM) other than those mentioned above	A
0x9819	8	Point for receiving response from service components of service adapters(CUSTOM) other than those mentioned above	A
0x9840	3	Invocation of business process services	A
0x9841	4	Point for receiving response from business process services	A
0x9842	5	Entry to business process reception	A
0x9843	6	Exit from business process reception	A

Legend:

A:Indicates the "Standard" level.

When executing database access

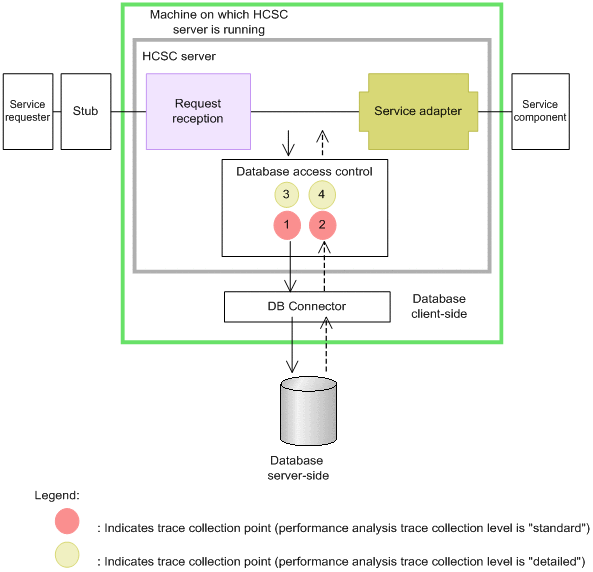

The following figure shows the collection point of performance analysis trace at the time of accessing the database when the HCSC server fetches commands.

Figure 7‒14:  Performance analysis trace collection point (when executing database access)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure 7-14 Performance analysis trace collection point (when executing database access)".

Table 7‒32:  Performance analysis trace collection point(when executing database access)

Event ID	Number in figure	Trace collection point	Level
0x9850	1	Invocation of DB connector	A
0x9851	2	Point for receiving response from DB connector	A
0x9852	3	Invocation of execution log of DB connector	B
0x9853	4	Point for receiving response from execution log of DB connector	B

Legend:

A:Indicates the "Standard" level.

B:Indicates the "Detail" level.

When executing the file access

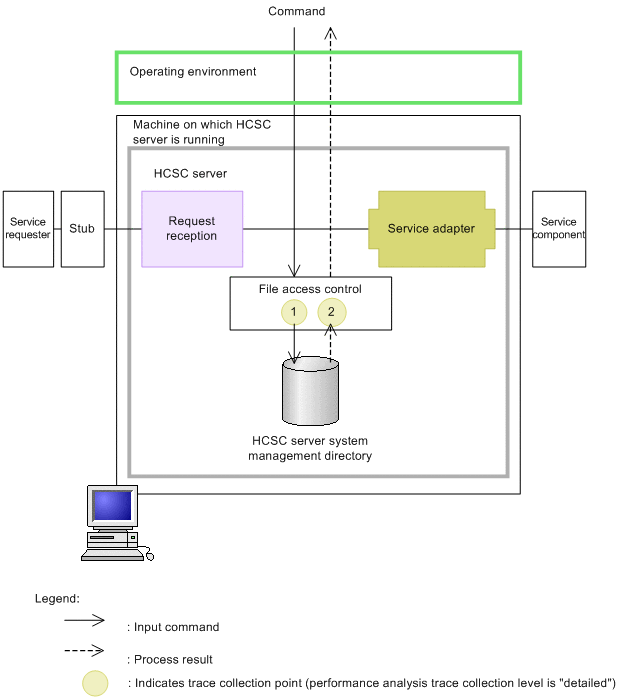

When you setup the HCSC server in a configuration in which the database is not used, files are accessed instead of the database when the command is processed. Acquire the performance analysis trace while accessing these files. The following figure shows the collection point when accessing files:

Figure 7‒15:  Performance analysis trace collection point (when accessing files)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure 7-15 Performance analysis trace collection point (when accessing files)".

Table 7‒33:  Performance analysis trace collection point (when accessing files)

Event ID	Number in figure	Trace collection point	Level
0x9854	1	Invocation of file access (before opening the file)	B
0x9855	2	Point for receiving response from file access (after closing the file)	B

Legend:

B:Indicates the "Detail" level.

(b) For HCSC server (Business process infrastructure)

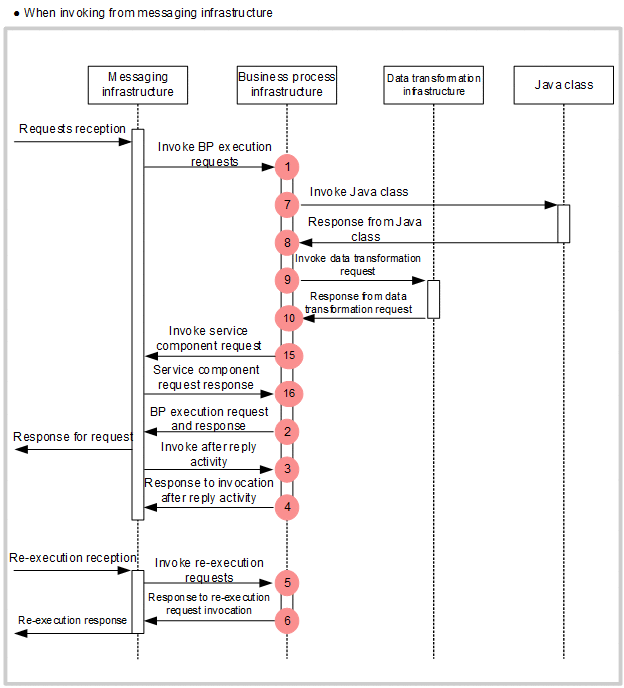

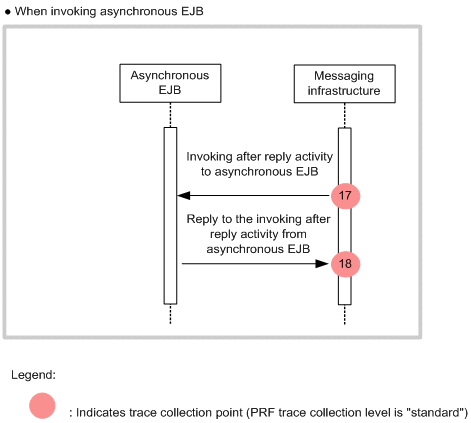

The following figure shows the performance analysis trace collection point:

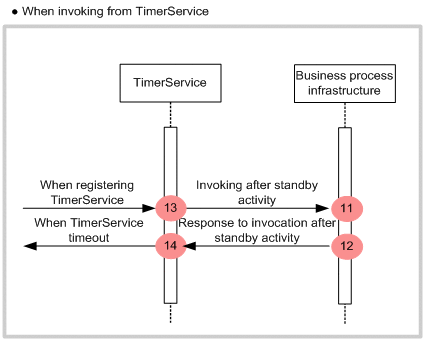

Figure 7‒16:  Trace collection point of performance analysis trace (business process infrastructure)

The following tables lists the event ID, trace collection point, and the performance analysis trace collection level, and indicates the output content of Interface name and Option information for each event ID. The numbers in the Number in figure column of the table correspond to the numbers in the above figure.

Table 7‒34:  Performance analysis trace collection point(business process infrastructure)

Event ID	Number in figure	Trace collection point	Level	Interface name	Option information
0x9900	1	Invoking a request for business process execution from messaging infrastructure	A	Business process definition name	Message common ID
0x9901	2	Response to messaging infrastructure for the request to execute business process	A	Business process definition name	Message common ID Fault name(when abnormal)
0x9902	3	Invoking after reply activity from messaging infrastructure	A	Business process definition name	Message common ID
0x9903	4	Response to invocation after reply activity from messaging infrastructure	A	Business process definition name	Message common ID Fault name(when abnormal)
0x9904	5	Invoking the request to re-execute from messaging infrastructure	A	Business process definition name	Message common ID
0x9905	6	Response to invocation of the request to re-execute from messaging infrastructure	A	Business process definition name	Message common ID Fault name(when abnormal)
0x9906	7	Invoking the user-created Java class	A	Java class name	None
0x9907	8	Response from the user-created Java class	A	Java class name	Fault name(when abnormal)
0x9908	9	Invoking data transformation request	A	"Data Transform"	None
0x9909	10	Response from data transformation request	A	"Data Transform"	Fault name(when abnormal)
0x990A	11	Invoking from TimerService after the standby activity	A	Business process definition name	Message common ID
0x990B	12	Response to invocation from TimerService after the standby activity	A	Business process definition name	Message common ID Fault name(when abnormal)
0x990C	13	When registering of TimerService	A	Business process definition name	Message common ID Standby cancellation time
0x990D	14	In the case of TimerService timeout	A	Business process definition name	Message common ID
0x9910	15	Invoking a service component request to messaging infrastructure	A	Service name	Message common ID Hash code for parent thread (at the time of parallel execution)
0x9911	16	Response to the service component request from messaging infrastructure	A	Service name	Message common ID Hash code for parent thread (at the time of parallel execution) Fault name(when abnormal)
0x9912	17	Invoking after reply activity from messaging infrastructure to asynchronous EJB	A	Business process definition name	Message common ID Process instance identifier
0x9913	18	Response to the Invoking after reply activity from asynchronous EJB to messaging infrastructure	A	Business process definition name	Message common ID Process instance identifier

(c) For HCSC server (Database adapter)

The trace collection point of performance analysis trace differs depending on whether you execute startup operations or service components.

At the time of starting

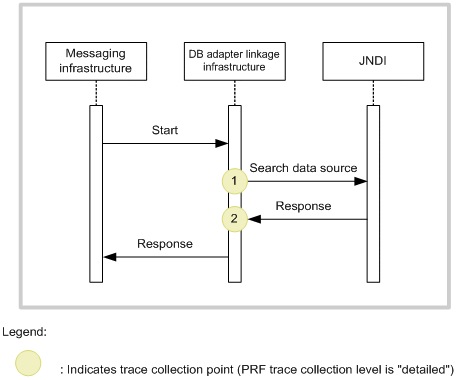

The following figure shows the performance analysis trace collection point at the time of starting:

Figure 7‒17:  Trace collection point of performance analysis trace (when starting the DB adapter)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure 7-17 Trace collection point of performance analysis trace (when starting the DB adapter)".

Table 7‒35:  Performance analysis trace collection point (when starting DB adapter)

Event ID	Number in figure	Trace collection point	Level
0x9B60	1	Immediately before data source search	B
0x9B61	2	Immediately after data source search	B
0x9B62			B

Legend:

B:Indicates the "Detail" level.

When executing service components

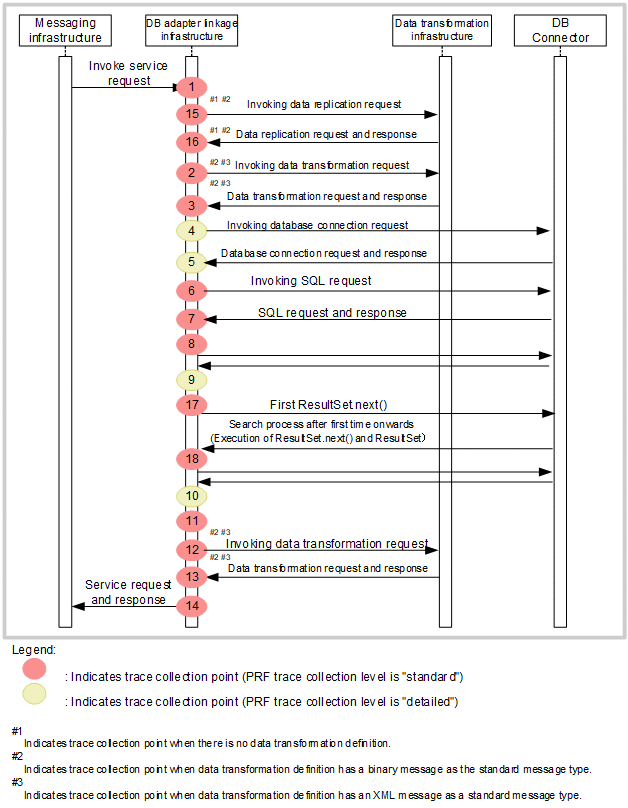

The following figure shows the trace collection point of performance analysis trace when executing service components:

Figure 7‒18:  Trace collection point of performance analysis trace (when executing DB adapter service)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure 7-18 Trace collection point of performance analysis trace (when executing DB adapter service)".

Table 7‒36:  Performance analysis trace collection point(when executing DB adapter service)

Event ID	Number in figure	Trace collection point	Level
0x9B00	1	Immediately after invoking a service component request from messaging infrastructure	A
0x9B01	14	Immediately before the response to the service component request from messaging infrastructure	A
0x9B02			A
0x9B20	2#1#2, 12#1#2	Immediately before invoking a data transformation request	A
0x9B21	3#1#2, 13#1#2	Immediately after invoking a data transformation request	A
0x9B22			A
0x9B23	15#2#3	Immediately before invoking a data replication request	A
0x9B24	16#2#3	Immediately after the response to the data replication request	A
0x9B25			A
0x9B63	4	Immediately before invoking a request to connect to database	B
0x9B64	5	Immediately after invoking a request to connect to database	B
0x9B65			B
0x9B66	6	Immediately before invoking an SQL request	A
0x9B67	7	Immediately after the response to the SQL request	A
0x9B68			A
0x9B69	6	Immediately before invoking an SQL request	A
0x9B6A	7	Immediately after the response to the SQL request	A
0x9B6B			A
0x9B6C	6	Immediately before invoking an SQL request	A
0x9B6D	7	Immediately after the response to the SQL request	A
0x9B6E			A
0x9B6F	17	When executing SELECT statement from DB adapter (only when ResultSet.next() is output for the first time)	A
0x9B70	18		A
0x9B71			A
0x9B40	8	Immediately before storing SQL (SELECT) execution results	A
0x9B41	11	Immediately after storing SQL (SELECT) execution results	A
0x9B42			A
0x9B43	9	Immediately before collecting SQL (SELECT) execution results	B
0x9B44	10	Immediately after collecting SQL (SELECT) execution results	B
0x9B45			B

Legend:

A:Indicates the "Standard" level.

B:Indicates the "Detail" level.

Note

The event IDs that are not listed in the table (0x9A00 to 0x9AFF) are issued from the data transformation infrastructure.

Note#1

Indicates the trace collection point when the data transformation definition has an XML message as the standard message type.

Note#2

Indicates the trace collection point when the data transformation definition has a binary message as the standard message type.

Note#3

Indicates the trace collection point when there is no data transformation definition.

(d) In HCSC server (data transformation infrastructure)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level.

Table 7‒37:  Performance analysis trace collection point (data transformation infrastructure)

Event ID	Trace collection point	Level
0x9A07	Immediately before acquiring the value from XML	A
0x9A08	Immediately after acquiring the value from XML	A
0x9A0C	Immediately before setting up the value in XML	A
0x9A0D	Immediately after setting up the value in XML	A
0x9A11	Immediately before acquiring the node from XML	A
0x9A12	Immediately after acquiring the node from XML	A
0x9A16	Immediately before setting up the node in XML	A
0x9A17	Immediately after setting up the node in XML	A
0x9A43	Immediately before data transformation	A#
0x9A44	Immediately after data transformation	A#
0x9A52	Immediately before generating the data transformation template	A
0x9A53	Immediately after generating the data transformation template	A
0x9A65	Immediately before generating the XML schema instance	A
0x9A66	Immediately after generating the XML schema instance	A
0x9A6A	Immediately before generating the XML schema instance	A
0x9A6B	Immediately after generating the XML schema instance	A
0x9A77	Immediately before XML data analysis	A
0x9A78	Immediately after XML data analysis	A
0x9A7A	Immediately before XML schema validation	A
0x9A7B	Immediately after XML schema validation	A
0x9A7C	Immediately before XML schema validation	A
0x9A7D	Immediately after XML schema validation	A
0x9A80	Immediately before XML data analysis	A
0x9A81	Immediately after XML data analysis	A
0x9A82	Immediately before data transformation	A
0x9A83	Immediately after data transformation	A
0x9A84	Immediately before XML data analysis	A
0x9A85	Immediately after XML data analysis	A
0x9A88	Immediately before generating the XML schema instance	A
0x9A89	Immediately after generating the XML schema instance	A
0x9A8D	Immediately before generating the XML schema instance	A
0x9A8E	Immediately after generating the XML schema instance	A
0x9A8F	Before invoking transformation function jar	A
0x9A90	After invoking transformation function jar	A

(e) For HCSC server (component-common UOC)

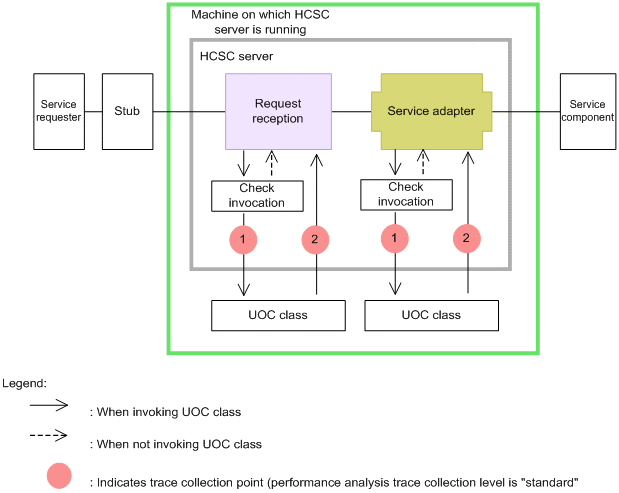

The performance analysis trace when you use the Component-common UOC functionalityis output immediately before and after invoking the UOC class. The following figure shows the trace collection point of performance analysis trace when using component-common:

Figure 7‒19:  Performance analysis trace collection point (when using component-common UOC)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure 7-19 Performance analysis trace collection point (when using component-common UOC)".

Table 7‒38:  Performance analysis trace collection point (when using component-common UOC)

Event ID	Number in figure	Trace collection point	Level
0x986C	1	Invocation of component-common UOC	A
0x986D	2	Point for receiving response from component-common UOC	A

The output format of the option information is as follows:

<Request identification information (parent ID)> <Request identification information (child ID)> Component type=<Component type (service adapter or reception)>, Component kind=<type>, Component ID=<Service ID of service adapter or reception ID#>, OP=<service operation name>

In case of abnormal end, the option information is output in the following format:

<Request identification information (parent ID)> <Request identification information (child ID)> Component type=< Component type (adapter type or reception type)>, Component ID=< Service ID of service adapter or reception ID #>, OP=< service operation name >, Exception=<exception class name>

Note#

If you use the standard reception, the following fixed values are set:

Component	Reception ID
Standard reception (Web services) (SOAP1.1,SOAP 1.1/1.2 combined mode is common)	StandardReception_SOAP
Standard reception (SessionBean)	StandardReception_EJB
Standard reception (MDB(WS-R))	StandardReception_WSR
Standard reception (MDB(DB queue))	StandardReception_DBQ
