3.5.2 Flow of system setup using Easy Setup functionality for the HCSC production environment

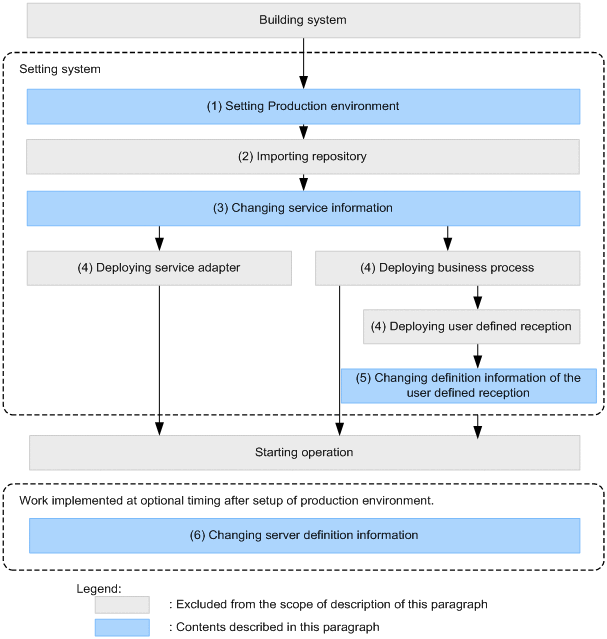

The following figure shows the flow of system setup using Easy Setup functionality for the HCSC production environment.
|
|
![[Figure]](GRAPHICS/ZC031000.GIF)
- Important note
-
Specify settings so that Management Server and Administration Agent start automatically when the OS starts.
The following paragraphs describe the operations for setting up a system by using the Easy Setup functionality for the HCSC production environment.
- Organization of this subsection
(1) Setting up the production environment
Set up the production environment by using the Easy Setup functionality for the HCSC production environment. To setup the production environment by using the Easy Setup functionality for the HCSC production environment, you must create the definition file by using the template file. For the setup of the production environment, see "3.5.3(1) Setting up the production environment ".
(2) Importing the repository
Import the repository created in the development environment into the operating environment. For details on importing the repository, "4.3 Importing a repository".
(3) Changing the service information
Change the service information set up by using the Easy Setup functionality for the HCSC production environment. For details on changing the set up service information, see "3.5.3(2) Changing the setup information".
(4) Deploying a service adapters, business processes, and user-defined receptions
Deploy the service adapters, business processes, and user-defined receptions in the execution environment. For details on deploying the service adapters, business processes, and user-defined receptions, see "3.1.8 Deploying a service adapter", "3.1.13 Deploying a business process", and "3.1.14 Deploying a user-defined reception".
(5) Changing the definition information of the user-defined reception
Change the definition information of the user-defined reception set up by using the Easy Setup functionality for the HCSC production environment. For details on changing the definition information of the set up user-defined reception, see "3.5.3(2) Changing the setup information".
(6) Changing the server definition information
Change the definition information for the server at any time after setting up the production environment. For details on changing the server definition information, see "3.5.3(2) Changing the setup information".
