15.12.10 Trace collection points and trace information that can be collected during the connection operation of the DB Connector
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
|---|---|---|---|
|
0xA3A4 |
1 |
Immediately before invoking DataSource#getConnection() |
B |
|
0xA3A5 |
2 |
Immediately after returning from DataSource#getConnection() |
B |
|
0xA3A6 |
1 |
Immediately before invoking DataSource#getConnection(String, String) |
B |
|
0xA3A7 |
2 |
Immediately after returning from DataSource#getConnection(String, String) |
B |
|
0xA3A8 |
1 |
Immediately before invoking DriverManager#getConnection(String, Properties) |
B |
|
0xA3A9 |
2 |
Immediately after returning from DriverManager#getConnection(String, Properties) |
B |
|
0xA3AA |
1 |
Immediately before invoking DriverManager#getConnection(String, String, String) |
B |
|
0xA3AB |
2 |
Immediately after returning from DriverManager#getConnection(String, String, String) |
B |
|
0xA3AC |
9 |
Immediately before invoking Connection#close() |
B |
|
0xA3AD |
10 |
Immediately after returning from Connection#close() |
B |
|
0xA3AE |
7 |
Immediately before invoking Connection#commit() |
B |
|
0xA3AF |
8 |
Immediately after returning from Connection#commit() |
B |
|
0xA3B0 |
3 |
Immediately before invoking Connection#createStatement() |
B |
|
0xA3B1 |
4 |
Immediately after returning from Connection#createStatement() |
B |
|
0xA3B2 |
3 |
Immediately before invoking Connection#prepareCall(String) |
B |
|
0xA3B3 |
4 |
Immediately after returning from Connection#prepareCall(String) |
B |
|
0xA3B4 |
3 |
Immediately before invoking Connection#prepareCall(String, int, int) |
B |
|
0xA3B5 |
4 |
Immediately after returning from Connection#prepareCall(String, int, int) |
B |
|
0xA3B6 |
3 |
Immediately before invoking Connection#prepareStatement(String) |
B |
|
0xA3B7 |
4 |
Immediately after returning from Connection#prepareStatement(String) |
B |
|
0xA3B8 |
3 |
Immediately before invoking Connection#prepareStatement(String, int, int) |
B |
|
0xA3B9 |
4 |
Immediately after returning from Connection#prepareStatement(String , int, int) |
B |
|
0xA3BA |
7 |
Immediately before invoking Connection#rollback() |
B |
|
0xA3BB |
8 |
Immediately after returning from Connection#rollback() |
B |
|
0xA3BC |
5 |
Immediately before invoking Statement#executeQuery(String) |
B |
|
0xA3BD |
6 |
Immediately after returning from Statement#executeQuery(String) |
B |
|
0xA3BE |
5 |
Immediately before invoking Statement#executeUpdate(String) |
B |
|
0xA3BF |
6 |
Immediately after returning from Statement#executeUpdate(String) |
B |
|
0xA3C0 |
5 |
Immediately before invoking PreparedStatement#executeUpdate() |
B |
|
0xA3C1 |
6 |
Immediately after returning from PreparedStatement#executeUpdate() |
B |
|
0xA3C2 |
5 |
Immediately before invoking PreparedStatement#executeQuery() |
B |
|
0xA3C3 |
6 |
Immediately after returning from PreparedStatement#executeQuery() |
B |
- Legend:
-
B: Advanced
- #
-
Corresponds to the numbers in Figure 15-30.

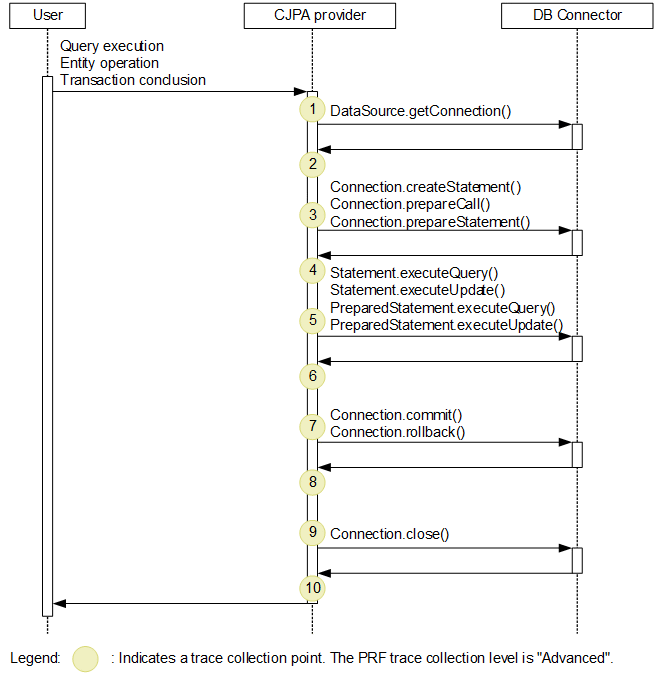

The following figure shows the trace collection points.
|
|
![[Figure]](GRAPHICS/ZU076800.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected during the connection operation of the DB Connector.
|
No. in the figure#1 |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1 |
0xA3A4 |
B |
-- |
-- |
-- |
|
0xA3A6 |
B |
-- |
-- |
-- |
|
|
0xA3A8 |
B |
-- |
-- |
-- |
|
|
0xA3AA |
B |
-- |
-- |
-- |
|
|
2 |
0xA3A5 |
B |
-- |
-- |
#2 |
|
0xA3A7 |
B |
-- |
-- |
#2 |
|
|
0xA3A9 |
B |
-- |
-- |
#2 |
|
|
0xA3AB |
B |
-- |
-- |
#2 |
|
|
3 |
0xA3B0 |
B |
-- |
-- |
-- |
|
0xA3B2 |
B |
-- |
-- |
-- |
|
|
0xA3B4 |
B |
-- |
-- |
-- |
|
|
0xA3B6 |
B |
-- |
-- |
-- |
|
|
0xA3B8 |
B |
-- |
-- |
-- |
|
|
4 |
0xA3B1 |
B |
-- |
-- |
#2 |
|
0xA3B3 |
B |
-- |
-- |
#2 |
|
|
0xA3B5 |
B |
-- |
-- |
#2 |
|
|
0xA3B7 |
B |
-- |
-- |
#2 |
|
|
0xA3B9 |
B |
-- |
-- |
#2 |
|
|
5 |
0xA3BC |
B |
-- |
-- |
-- |
|
0xA3BE |
B |
-- |
-- |
-- |
|
|
0xA3C0 |
B |
-- |
-- |
-- |
|
|
0xA3C2 |
B |
-- |
-- |
-- |
|
|
6 |
0xA3BD |
B |
-- |
-- |
#2 |
|
0xA3BF |
B |
-- |
-- |
#2 |
|
|
0xA3C1 |
B |
-- |
-- |
#2 |
|
|
0xA3C3 |
B |
-- |
-- |
#2 |
|
|
7 |
0xA3AE |
B |
-- |
-- |
-- |
|
0xA3BA |
B |
-- |
-- |
-- |
|
|
8 |
0xA3AF |
B |
-- |
-- |
#2 |
|
0xA3BB |
B |
-- |
-- |
#2 |
|
|
9 |
0xA3AC |
B |
-- |
-- |
-- |
|
10 |
0xA3AD |
B |
-- |
-- |
#2 |
- Legend:
-
B: Advanced
--: Not applicable
- #1
-
Corresponds to the numbers in Figure 15-30.
- #2
-
When an exception occurs, the exception is displayed.
