15.12.9 Trace collection points and trace information that can be collected during transaction linkage with the transaction manager
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure#1 |
Trace acquisition points |
Level |
|---|---|---|---|
|
0xA39E |
1 |
Immediately before the process for correlating the persistent context and transaction starts |
B |
|
0xA39F |
2 |
Immediately after the process for correlating the persistent context and transaction is complete |
B |
|
0xA3A0 |
3 |
Immediately before the pre-processing of the JTA transaction conclusion starts |
B |
|
0xA3A1 |
4 |
Immediately after the pre-processing of the JTA transaction conclusion ends |
B |
|
0xA3A2 |
5 |
Immediately before the post-processing of the JTA transaction conclusion starts |
B |
|
0xA3A3 |
6 |
Immediately after the post-processing of the JTA transaction conclusion ends |
B |
- Legend:
-
B: Advanced
- #1
-
Corresponds to the numbers in Figure 15-29.

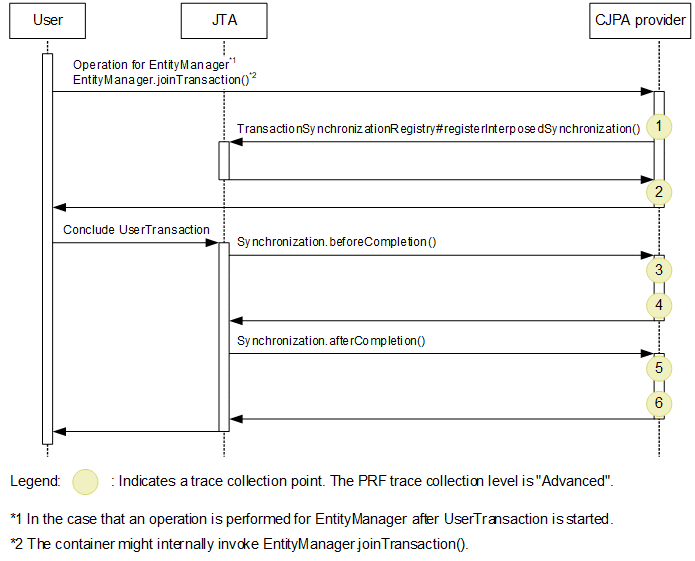

The following figure shows the trace collection points.
|
|
![[Figure]](GRAPHICS/ZU076700.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected during transaction linkage with the transaction manager.
|
No. in the figure#1 |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1 |
0xA39E |
B |
-- |
-- |
-- |
|
2 |
0xA39F |
B |
-- |
-- |
#2 |
|
3 |
0xA3A0 |
B |
-- |
-- |
-- |
|
4 |
0xA3A1 |
B |
-- |
-- |
#2 |
|
5 |
0xA3A2 |
B |
-- |
Status (int value of javax.transaction.Status) of the transaction passed by an argument of afterCompletion() |
-- |
|
6 |
0xA3A3 |
B |
-- |
-- |
#2 |
- Legend:
-
B: Advanced
--: Not applicable
- #1
-
Corresponds to the numbers in Figure 15-29.
- #2
-
When an exception occurs, the exception is displayed.
