15.12.7 Trace collection points and trace information that can be collected in the case of callback method to the user
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure#1 |
Trace acquisition points |
Level |
|---|---|---|---|
|
0xA390 |
1 |
Immediately before invoking the PrePersist() callback method |
A |
|
0xA391 |
2 |
Immediately after returning from the PrePersist() callback method |
A |
|
0xA392 |
1 |
Immediately before invoking the PostPersist() callback method |
A |
|
0xA393 |
2 |
Immediately after returning from the PostPersist() callback method |
A |
|
0xA394 |
1 |
Immediately before invoking the PreRemove() callback method |
A |
|
0xA395 |
2 |
Immediately after returning from the PreRemove() callback method |
A |
|
0xA396 |
1 |
Immediately before invoking the PostRemove() callback method |
A |
|
0xA397 |
2 |
Immediately after returning from the PostRemove() callback method |
A |
|
0xA398 |
1 |
Immediately before invoking the PreUpdate() callback method |
A |
|
0xA399 |
2 |
Immediately after returning from the PreUpdate() callback method |
A |
|
0xA39A |
1 |
Immediately before invoking the PostUpdate() callback method |
A |
|
0xA39B |
2 |
Immediately after returning from the PostUpdate() callback method |
A |
|
0xA39C |
1 |
Immediately before invoking the PostLoad() callback method |
A |
|
0xA39D |
2 |
Immediately after returning from the PostLoad() callback method |
A |
- Legend:
-
A: Standard
- #1
-
Corresponds to the numbers in Figure 15-27.

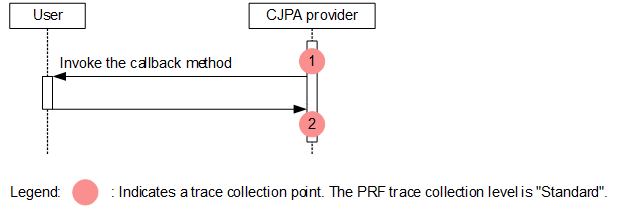

The following figure shows the trace collection points.
|
|
![[Figure]](GRAPHICS/ZU076500.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected in the case of the callback method to the user.
|
No. in the figure#1 |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1 |
0xA390 |
A |
Callback method name specified by the user |
-- |
-- |
|
0xA392 |
A |
-- |
-- |
||
|
0xA394 |
A |
-- |
-- |
||
|
0xA396 |
A |
-- |
-- |
||
|
0xA398 |
A |
-- |
-- |
||
|
0xA39A |
A |
-- |
-- |
||
|
0xA39C |
A |
-- |
-- |
||
|
2 |
0xA391 |
A |
Callback method name specified by the user |
-- |
#2 |
|
0xA393 |
A |
-- |
#2 |
||
|
0xA395 |
A |
-- |
#2 |
||
|
0xA397 |
A |
-- |
#2 |
||
|
0xA399 |
A |
-- |
#2 |
||
|
0xA39B |
A |
-- |
#2 |
||
|
0xA39D |
A |
-- |
#2 |
||
- Legend:
-
A: Standard
--: Not applicable
- #1
-
Corresponds to the numbers in Figure 15-27.
- #2
-
When an exception occurs, the exception is displayed.
