15.12.6 Trace collection points and trace information that can be collected during the operation of EntityTransaction
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure#1 |
Trace acquisition points |
Level |
|---|---|---|---|
|
0xA310#2 |
3 |
When the processing of EntityTransaction#begin() starts |
B |
|
0xA311#2 |
4 |
When the processing of EntityTransaction#begin() ends |
B |
|
0xA312#2 |
5 |
When the processing of EntityTransaction#commit() starts |
B |
|
0xA313#2 |
6 |
When the processing of EntityTransaction#commit() ends |
B |
|
0xA314#2 |
5 |
When the processing of EntityTransaction#rollback() starts |
B |
|
0xA315#2 |
6 |
When the processing of EntityTransaction#rollback() ends |
B |
|
0xA362#3 |
1 |
When the processing of EntityManager#getTransaction() starts |
B |
|
0xA363#3 |
2 |
When the processing of EntityManager#getTransaction() ends |
B |
- Legend:
-
B: Advanced
- #1
-
Corresponds to the numbers in Figure 15-26.
- #2
-
Trace collection point for javax.persistence.EntityTransaction.
- #3
-
Trace collection point for javax.persistence.EntityManager.

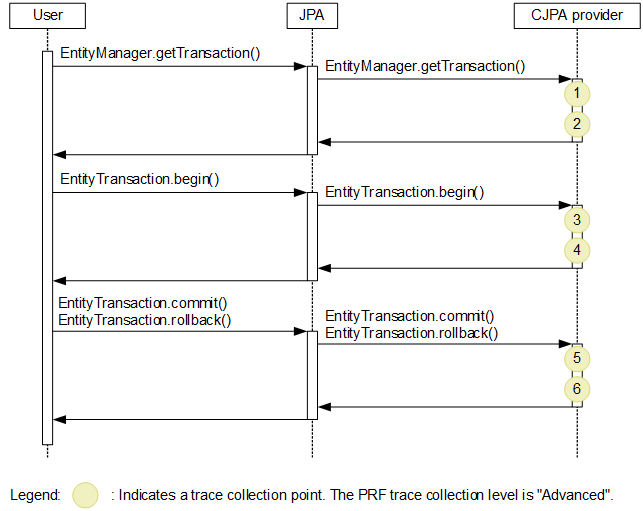

The following figure shows the trace collection points.
|
|
![[Figure]](GRAPHICS/ZU076400.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected during the operation of EntityTransaction.
|
No. in the figure#1 |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1#2 |
0xA362 |
B |
-- |
-- |
-- |
|
2#2 |
0xA363 |
B |
-- |
-- |
#3 |
|
3#4 |
0xA310 |
B |
-- |
-- |
-- |
|
4#4 |
0xA311 |
B |
-- |
-- |
#3 |
|
5#4 |
0xA312 |
B |
-- |
-- |
-- |
|
0xA314 |
B |
-- |
-- |
-- |
|
|
6#4 |
0xA313 |
B |
-- |
-- |
#3 |
|
0xA315 |
B |
-- |
-- |
#3 |
|
- Legend:
-
B: Advanced
--: Not applicable
- #1
-
Corresponds to the numbers in Figure 15-26.
- #2
-
Trace collection point for javax.persistence.EntityManager.
- #3
-
When an exception occurs, the exception is displayed.
- #4
-
Trace collection point for javax.persistence.EntityTransaction.
