8.26.4 When a Ping is received

The following figure shows the trace collection points in WebSocket.

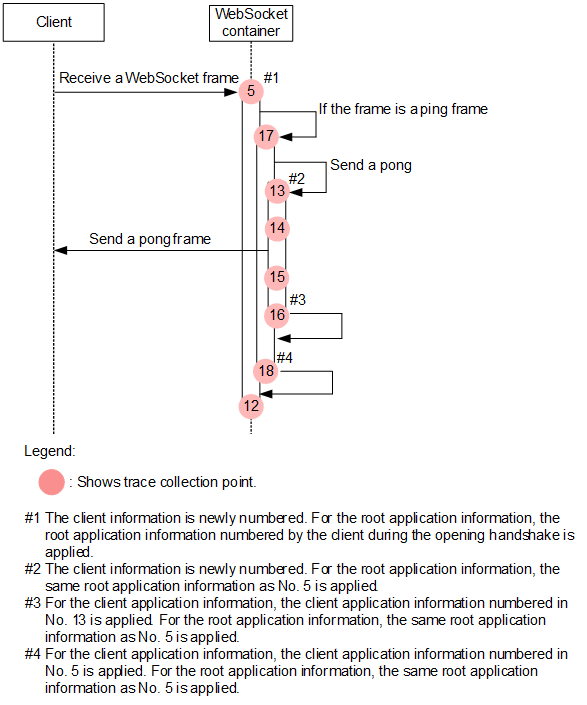

Figure 8‒104: Trace collection points of WebSocket (when a Ping is received)

The following table describes the event IDs, trace levels, trace collection points, and information that can be collected.

Table 8‒138: Details of the trace collection points of WebSocket (when a Ping is received)
Event ID	No. in the figures^#	Level	Trace acquisition points	Information that you can acquire
Event ID	No. in the figures^#	Level	Trace acquisition points	Interface name	Operation name	Optional
0xE102	5	A	Immediately before the start of processing for the received WebSocket frame	READ	--	--
0xE103	12	A	Immediately after the completion of processing for the received WebSoket frame	READ	--	In a normal state: None In an abnormal state: Exception name
0xE112	14	A	Immediately before the WebSocket frame transmission processing starts	WRITE	--	--
0xE113	15	A	Immediately after the WebSocket frame transmission processing is complete	WRITE	--	In a normal state: None In an abnormal state: Exception name
0xE142	17	A	Immediately before the start of processing after receiving a Ping frame	PING	--	--
0xE143	18	A	Immediately after the completion of processing after receiving a Ping frame	PING	--	In a normal state: None In an abnormal state: Exception name
0xE130	13	A	Immediately after the `javax.websocket.RemoteEndpoint.Async.sendXXX` method is invoked	`javax.websocket.RemoteEndpoint.Async`	Method name (argument type)	Destination session ID
0xE131	16	A	Immediately before the return of the `javax.websocket.RemoteEndpoint.Async.sendXXX` method	`javax.websocket.RemoteEndpoint.Async`	Method name (argument type)	In a normal state: None In an abnormal state: Exception name
0xE132	13	A	Immediately after the `javax.websocket.RemoteEndpoint.Basic.sendXXX` method is invoked	`javax.websocket.RemoteEndpoint.Basic`	Method name (argument type)	Destination session ID
0xE133	16	A	Immediately before the return of the `javax.websocket.RemoteEndpoint.Basic.sendXXX` method	`javax.websocket.RemoteEndpoint.Basic`	Method name (argument type)	In a normal state: None In an abnormal state: Exception name
0xE134	13	A	Immediately after the `javax.websocket.RemoteEndpoint.sendXXX` method is invoked	`javax.websocket.RemoteEndpoint`	Method name (argument type)	Destination session ID
0xE135	16	A	Immediately before the return of the `javax.websocket.RemoteEndpoint.sendXXX` method	`javax.websocket.RemoteEndpoint`	Method name (argument type)	In a normal state: None In an abnormal state: Exception name

Legend:

A: Standard

--: Not applicable

#

Corresponds to the numbers in Figure 8-104.
