8.26.3 When data is sent

The following figure shows the trace collection points in WebSocket.

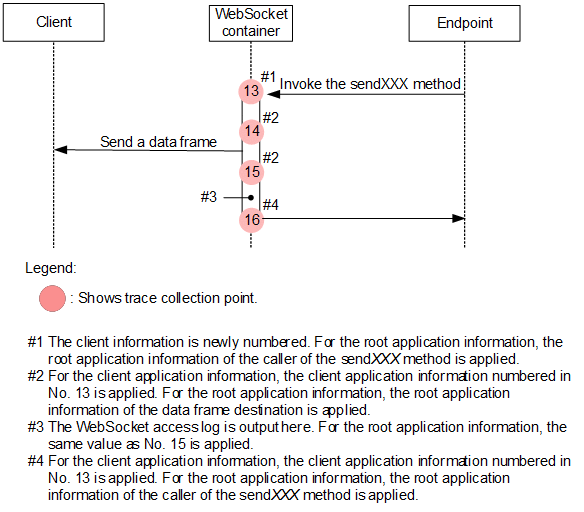

Figure 8‒103: Trace collection points of WebSocket (when data is sent)

The following table describes the event IDs, trace levels, trace collection points, and information that can be collected.

Table 8‒137: Details of the trace collection points of WebSocket (when data is sent)
Event ID	No. in the figures^#	Level	Trace acquisition points	Information that you can acquire
Event ID	No. in the figures^#	Level	Trace acquisition points	Interface name	Operation name	Optional
0xE112	14	A	Immediately before the WebSocket frame transmission processing starts	WRITE	--	--
0xE113	15	A	Immediately after the WebSocket frame transmission processing is complete	WRITE	--	In a normal state: None In an abnormal state: Exception name
0xE130	13	A	Immediately after the `javax.websocket.RemoteEndpoint.Async.sendXXX` method is invoked	`javax.websocket.RemoteEndpoint.Async`	Method name (argument type)	Destination session ID
0xE131	16	A	Immediately before the return of the `javax.websocket.RemoteEndpoint.Async.sendXXX` method	`javax.websocket.RemoteEndpoint.Async`	Method name (argument type)	In a normal state: None In an abnormal state: Exception name
0xE132	13	A	Immediately after the `javax.websocket.RemoteEndpoint.Basic.sendXXX` method is invoked	`javax.websocket.RemoteEndpoint.Basic`	Method name (argument type)	Destination session ID
0xE133	16	A	Immediately before the return of the `javax.websocket.RemoteEndpoint.Basic.sendXXX` method	`javax.websocket.RemoteEndpoint.Basic`	Method name (argument type)	In a normal state: None In an abnormal state: Exception name
0xE134	13	A	Immediately after the `javax.websocket.RemoteEndpoint.sendXXX` method is invoked	`javax.websocket.RemoteEndpoint`	Method name (argument type)	Destination session ID
0xE135	16	A	Immediately before the return of the `javax.websocket.RemoteEndpoint.sendXXX` method	`javax.websocket.RemoteEndpoint`	Method name (argument type)	In a normal state: None In an abnormal state: Exception name

Legend:

A: Standard

--: Not applicable

#

Corresponds to the numbers in Figure 8-103.
