8.18.3 Trace collection points of the JMS session interface and the trace information that can be collected
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
Number in the figure# |
Trace collection point |
Level |
|---|---|---|---|
|
0xA61E |
5 |
When the processing of Session.createSubscriber(topic) starts |
A |
|
0xA61F |
8 |
When the processing of Session.createSubscriber(topic) ends |
A |
|
0xA620 |
1 |
When the processing of Session.createBrowser(queue) starts |
A |
|
0xA621 |
4 |
When the processing of Session.createBrowser(queue) ends |
A |
|
0xA622 |
1 |
When the processing of Session.createBrowser(queue,selector) starts |
A |
|
0xA623 |
4 |
When the processing of Session.createBrowser(queue,selector) ends |
A |
|
0xA624 |
5 |
When the processing of Session.createSubscriber(topic,selector,noLocal) starts |
A |
|
0xA625 |
8 |
When the processing of Session.createSubscriber(topic,selector,noLocal) ends |
A |
|
0xA626 |
5 |
When the processing of Session.createDurableSubscriber(topic,name) starts |
A |
|
0xA627 |
8 |
When the processing of Session.createDurableSubscriber(topic,name) ends |
A |
|
0xA628 |
5 |
When the processing of Session.createDurableSubscriber(topic,name,selector,noLocal) starts |
A |
|
0xA629 |
8 |
When the processing of Session.createDurableSubscriber(topic,name,selector,noLocal) ends |
A |
|
0xA62A |
5 |
When the processing of Session.createConsumer(destination) starts |
A |
|
0xA62B |
8 |
When the processing of Session.createConsumer(destination) ends |
A |
|
0xA62C |
5 |
When the processing of Session.createConsumer(destination,selector) starts |
A |
|
0xA62D |
8 |
When the processing of Session.createConsumer(destination,selector) ends |
A |
|
0xA62E |
5 |
When the processing of Session.createConsumer(destination,selector,noLocal) starts |
A |
|
0xA62F |
8 |
When the processing of Session.createConsumer(destination,selector,noLocal) ends |
A |
|
0xA630 |
5 |
When the processing of Session.createReceiver(queue) starts |
A |
|
0xA631 |
8 |
When the processing of Session.createReceiver(queue) ends |
A |
|
0xA632 |
5 |
When the processing of Session.createReceiver(queue,selector) starts |
A |
|
0xA633 |
8 |
When the processing of Session.createReceiver(queue,selector) ends |
A |
|
0xA634 |
9 |
When the processing of Session.createPublisher(topic) starts |
A |
|
0xA635 |
12 |
When the processing of Session.createPublisher(topic) ends |
A |
|
0xA636 |
9 |
When the processing of Session.createProducer(destination) starts |
A |
|
0xA637 |
12 |
When the processing of Session.createProducer(destination) ends |
A |
|
0xA638 |
9 |
When the processing of Session.createSender(queue) starts |
A |
|
0xA639 |
12 |
When the processing of Session.createSender(queue) ends |
A |
|
0xA63A |
13 |
When the processing of Session.createQueue() starts |
A |
|
0xA63B |
16 |
When the processing of Session.createQueue() ends |
A |
|
0xA63C |
13 |
When the processing of Session.createTopic() starts |
A |
|
0xA63D |
16 |
When the processing of Session.createTopic() ends |
A |
|
0xA63E |
13 |
When the processing of Session.createTemporaryQueue() starts |
A |
|
0xA63F |
16 |
When the processing of Session.createTemporaryQueue() ends |
A |
|
0xA640 |
13 |
When the processing of Session.createTemporaryTopic() starts |
A |
|
0xA641 |
16 |
When the processing of Session.createTemporaryTopic() ends |
A |
|
0xA642 |
17 |
When the processing of Session.unsubscribe() starts |
A |
|
0xA643 |
20 |
When the processing of Session.unsubscribe() ends |
A |
|
0xA644 |
21 |
When the processing of Session.commit() starts |
A |
|
0xA645 |
24 |
When the processing of Session.commit() ends |
A |
|
0xA646 |
21 |
When the processing of Session.rollback() starts |
A |
|
0xA647 |
24 |
When the processing of Session.rollback() ends |
A |
|
0xA648 |
25 |
When the processing of Session.recover() starts |
A |
|
0xA649 |
26 |
When the processing of Session.recover() ends |
A |
|
0xA64A |
25 |
When the processing of Session.close() starts |
A |
|
0xA64B |
26 |
When the processing of Session.close() ends |
A |
|
0xA64C |
2 |
Invocation by CJMSP Broker immediately before invoking destination authentication for the browser |
A |
|
0xA64D |
3 |
Invocation by CJMSP Broker just after invoking destination authentication for the browser |
A |
|
0xA64E |
6 |
Invocation by CJMSP Broker immediately before invoking consumer |
A |
|
0xA64F |
7 |
Invocation by CJMSP Broker just after invoking consumer |
A |
|
0xA650 |
10 |
Invocation by CJMSP Broker immediately before invoking producer |
A |
|
0xA651 |
11 |
Invocation by CJMSP Broker just after invoking producer |
A |
|
0xA652 |
14 |
Invocation by CJMSP Broker immediately before invoking create destination |
A |
|
0xA653 |
15 |
Invocation by CJMSP Broker just after invoking create destination |
A |
|
0xA654 |
18 |
Invocation by CJMSP Broker immediately before invoking create persistence subscriber |
A |
|
0xA655 |
19 |
Invocation by CJMSP Broker just after invoking create persistence subscriber |
A |
|
0xA656 |
22 |
Invocation by CJMSP Broker immediately before invoking session commit |
A |
|
0xA657 |
23 |
Invocation by CJMSP Broker just after invoking session commit |
A |
|
0xA658 |
22 |
Invocation by CJMSP Broker immediately before invoking session rollback |
A |
|
0xA659 |
23 |
Invocation by CJMSP Broker just after invoking session rollback |
A |
|
0xA65A |
22 |
Invocation by CJMSP Broker immediately before invoking session recovery |
A |
|
0xA65B |
23 |
Invocation by CJMSP Broker just after invoking session recovery |
A |
- Legend:
-
A: Standard
- #
-
Corresponds to the numbers in Figure 8-73.
- Important note
-
-
The methods corresponding to the event IDs 0xA644 and 0xA645, 0xA646 and 0x647, Session.commit(), and Session.rollback() are not supported.
-
The event IDs 0xA65A and 0xA65B are not output. The event IDs are output when XATransaction is used.
-

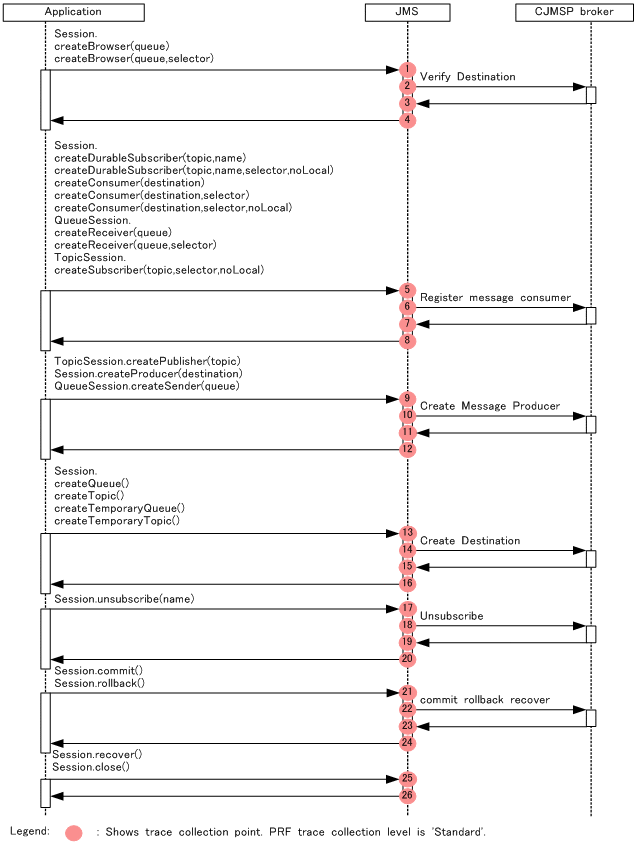

The following figure shows the trace collection points in the JMS session interface.
|
|
![[Figure]](GRAPHICS/ZU077600.GIF)
- Reference note
-
destination is created during the creation of producer or consumer. Therefore, the event IDs 0xa652 and 0xa653 might be invoked in the createProducer() and createConsumer() methods.
(2) Trace information that can be collected
The following table describes the trace information that can be collected for the JMS session interface.
|
Number in the figure# |
Event ID |
Level |
Information that can be collected |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Option |
|||
|
1 |
0xA620 |
A |
Queue name |
-- |
-- |
|
0xA622 |
A |
Selector string |
|||
|
2 |
0xA64C |
A |
-- |
-- |
-- |
|
3 |
0xA64D |
A |
-- |
-- |
-- |
|
4 |
0xA621 |
A |
-- |
-- |
-- |
|
0xA623 |
A |
||||
|
5 |
0xA61E |
A |
Topic name |
-- |
-- |
|
0xA624 |
A |
Selector string |
|||
|
0xA626 |
A |
-- |
|||
|
0xA628 |
A |
Selector string |
|||
|
0xA62A |
A |
Destination name |
-- |
||
|
0xA62C |
A |
Selector string |
|||
|
0xA62E |
A |
||||
|
0xA630 |
A |
Queue name |
-- |
||
|
0xA632 |
A |
Selector string |
|||
|
6 |
0xA64E |
A |
-- |
-- |
-- |
|
7 |
0xA64F |
A |
-- |
-- |
-- |
|
8 |
0xA61F |
A |
-- |
-- |
-- |
|
0xA625 |
A |
||||
|
0xA627 |
A |
||||
|
0xA629 |
A |
||||
|
0xA62B |
A |
||||
|
0xA62D |
A |
||||
|
0xA62F |
A |
||||
|
0xA631 |
A |
||||
|
0xA633 |
A |
||||
|
9 |
0xA634 |
A |
Topic name |
-- |
-- |
|
0xA636 |
A |
Destination name |
-- |
-- |
|
|
0xA638 |
A |
Queue name |
-- |
-- |
|
|
10 |
0xA650 |
A |
-- |
-- |
-- |
|
11 |
0xA651 |
A |
-- |
-- |
-- |
|
12 |
0xA635 |
A |
-- |
-- |
-- |
|
0xA637 |
A |
||||
|
0xA639 |
A |
||||
|
13 |
0xA63A |
A |
Queue name |
-- |
-- |
|
0xA63C |
A |
Topic name |
-- |
-- |
|
|
0xA63E |
A |
-- |
-- |
-- |
|
|
0xA640 |
A |
||||
|
14 |
0xA652 |
A |
-- |
-- |
-- |
|
15 |
0xA653 |
A |
-- |
-- |
-- |
|
16 |
0xA63B |
A |
-- |
-- |
-- |
|
0xA63D |
A |
||||
|
0xA63F |
A |
||||
|
0xA641 |
A |
||||
|
17 |
0xA642 |
A |
-- |
-- |
-- |
|
18 |
0xA654 |
A |
-- |
-- |
-- |
|
19 |
0xA655 |
A |
-- |
-- |
-- |
|
20 |
0xA643 |
A |
-- |
-- |
-- |
|
21 |
0xA644 |
A |
-- |
-- |
-- |
|
0xA646 |
A |
||||
|
0xA648 |
A |
||||
|
22 |
0xA656 |
A |
-- |
-- |
-- |
|
0xA658 |
A |
||||
|
0xA65A |
A |
||||
|
23 |
0xA657 |
A |
-- |
-- |
-- |
|
0xA659 |
A |
||||
|
0xA65B |
A |
||||
|
24 |
0xA645 |
A |
-- |
-- |
-- |
|
0xA647 |
A |
||||
|
0xA649 |
A |
||||
|
25 |
0xA64A |
A |
-- |
-- |
-- |
|
26 |
0xA64B |
A |
-- |
-- |
-- |
- Legend:
-
A: Standard
--: Not applicable
- #
-
Corresponds to the numbers in Figure 8-73.
