8.18.1 Trace collection points of the JMS ConnectionFactory interface and the trace information that can be collected

Organization of this subsection

(1) Trace collection points and PRF trace collection levels

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒105: Details of the trace collection points in the JMS ConnectionFactory interface
Event ID	Number in the figure^#	Trace collection point	Level
0xA600	1	When the processing of `ConnectionFactory.createConnection()` starts	A
0xA601	4	When the processing of `ConnectionFactory.createConnection()` ends	A
0xA602	1	When the processing of `ConnectionFactory.createConnection(uname,pwd)` starts	A
0xA603	4	When the processing of `ConnectionFactory.createConnection(uname,pwd)` ends	A
0xA604	1	When the processing of `QueueConnectionFactory.createQueueConnection()`starts	A
0xA605	4	When the processing of `QueueConnectionFactory.createQueueConnection()`ends	A
0xA606	1	When the processing of `QueueConnectionFactory.createQueueConnection(uname,pwd)` starts	A
0xA607	4	When the processing of `QueueConnectionFactory.createQueueConnection(uname,pwd)` ends	A
0xA608	1	When the processing of `TopicConnectionFactory.createTopicConnection()` starts	A
0xA609	4	When the processing of `TopicConnectionFactory.createTopicConnection()` ends	A
0xA60A	1	When the processing of `TopicConnectionFactory.createTopicConnection(uname,pwd)` starts	A
0xA60B	4	When the processing of `TopicConnectionFactory.createTopicConnection(uname,pwd)` ends	A
0xA60C	2	When the processing of `ManagedConnectionFactory.matchManagedConnections()` starts	B
0xA60D	3	When the processing of `ManagedConnectionFactory.matchManagedConnections()` ends	B

Legend:

A: Standard

B: Advanced

#

Corresponds to the numbers in Figure 8-71.

The following figure shows the trace collection points of the JMS ConnectionFactory interface.

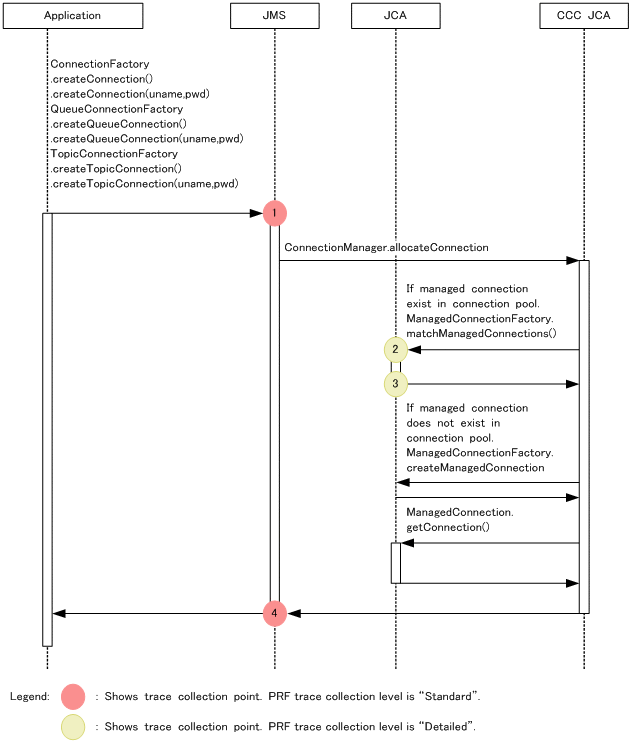

Figure 8‒71: Trace collection points in JMS ConnectionFactory interface

Trace information (interface name, operation name, and option) cannot be collected for the JMS ConnectionFactory interface.
