8.14.2 Trace collection points of the user log
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
|---|---|---|---|
|
0x9C02 |
1 |
When message output using the user log starts |
B |
|
0x9C03 |
2 |
When message output using the user log is complete |
B |
- Legend:
-
B: Advanced
- #
-
Corresponds to the numbers in Figure 8-61.

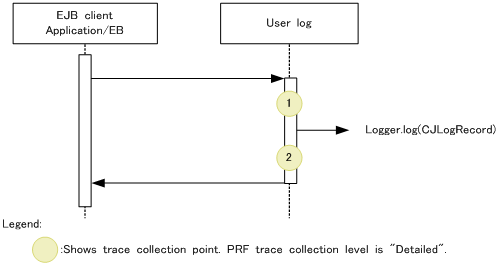

The following figure shows the trace collection points of the user log.
|
|
![[Figure]](GRAPHICS/ZU074500.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected in the user log.
|
No. in the figure# |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1 |
0x9C02 |
B |
Application distinguished name |
Message ID |
-- |
|
2 |
0x9C03 |
B |
Application distinguished name |
Message ID |
-- |
- Legend:
-
B: Advanced
--: Not applicable
- #
-
Corresponds to the numbers in Figure 8-61.
