8.14.1 Trace collection points of standard output or standard error output
- Organization of this subsection
(1) Trace collection points and PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
---|---|---|---|
0x9C00 |
1 |
When the output to standard output or standard error output starts |
B |
0x9C01 |
2 |
When the output to standard output or standard error output is complete |
B |
- Legend:
-
B: Advanced
- #
-
Corresponds to the numbers in Figure 8-60.

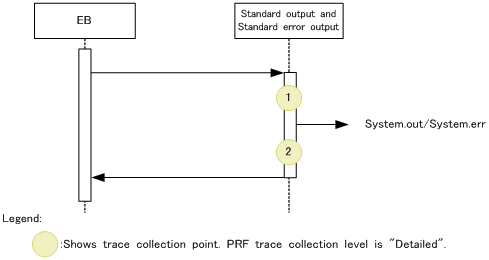

The following figure shows the trace collection points in the case of standard output or standard error output.
|
(2) Trace information that can be collected
The following table describes the trace information that can be collected in the case of standard output or standard error output.
No. in the figure# |
Event ID |
Level |
Information that you can acquire |
||
---|---|---|---|---|---|
Interface name |
Operation name |
Optional |
|||
1 |
0x9C00 |
B |
Stream name (out or err) |
-- |
-- |
2 |
0x9C01 |
B |
Stream name (out or err) |
-- |
-- |
- Legend:
-
B: Advanced
--: Not applicable
- #
-
Corresponds to the numbers in Figure 8-60.
