8.10.2 When UserTransaction is used

This subsection describes the trace collection points when UserTransaction is used, and also the trace information that can be collected.

Organization of this subsection

(1) Trace collection points and PRF trace collection levels

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒66: Details of trace collection points when UserTransaction is used
Event ID	No. in the figure^#	Trace acquisition points	Level
0x8813	1	Immediately before the transaction starts	A
0x8814	2	Immediately after the transaction starts	A
0x8815	3	Immediately before the transaction is committed	A
0x8816	4	Immediately after the transaction is committed	A
0x8817	3	Immediately before the transaction rolls back	A
0x8818	4	Immediately after the transaction rolls back	A

The following figure shows the trace collection points when UserTransaction is used.

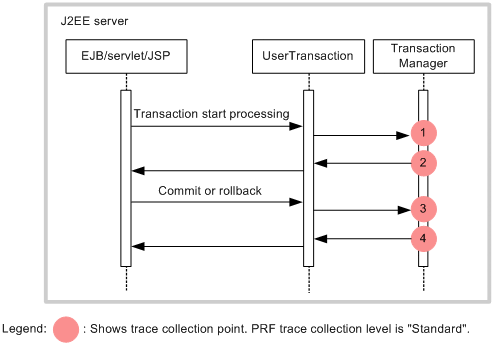

Figure 8‒41: Trace collection points when UserTransaction is used

The following table describes the trace information that can be collected when UserTransaction is used.

Table 8‒67: Trace information that can be collected when UserTransaction is used
No. in the figure^#	Event ID	Level	Information that you can acquire
No. in the figure^#	Event ID	Level	Interface name	Operation name	Optional
1	0x8813	A	--	--	--
2	0x8814	A	--	--	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
3	0x8815	A	--	--	--
3	0x8817	A	--	--	--
4	0x8816	A	--	--	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
4	0x8818	A	--	--

Legend:

A: Standard

--: Not applicable

#

Corresponds to the numbers in Figure 8-41.
