8.10.1 When a CMT and TransactionManager are used
This subsection describes the trace collection points when a CMT and javax.transaction.TransactionManager are used, and also the trace information that can be collected.
- Organization of this subsection
(1) Trace collection points and the PRF trace collection levels
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
|
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
|---|---|---|---|
|
0x8811 |
1 |
Immediately before the transaction starts |
A |
|
0x8812 |
2 |
Immediately after the transaction starts |
A |
|
0x8815 |
3 |
Immediately before the transaction is committed |
A |
|
0x8816 |
4 |
Immediately after the transaction is committed |
A |
|
0x8817 |
3 |
Immediately before the transaction rolls back |
A |
|
0x8818 |
4 |
Immediately after the transaction rolls back |
A |
- Legend:
-
A: Standard
- #
-
Corresponds to the numbers in Figure 8-39 and Figure 8-40.

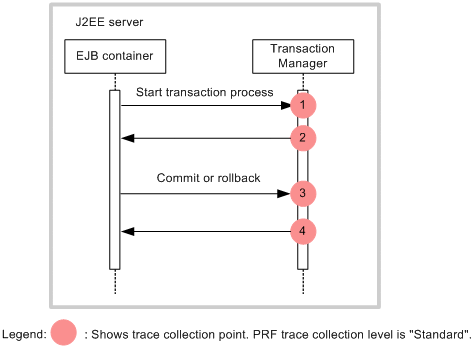

The following figure shows the trace collection points when a CMT is used.
|
|
![[Figure]](GRAPHICS/ZU072700.GIF)

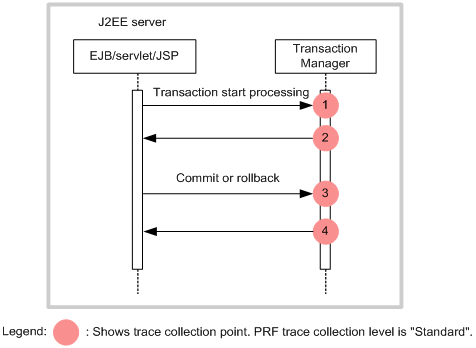

The following figure shows the trace collection points when TransactionManager is used.
|
|
![[Figure]](GRAPHICS/ZU072710.GIF)
(2) Trace information that can be collected
The following table describes the trace information that can be collected when a CMT and TransactionManager are used.
|
No. in the figure# |
Event ID |
Level |
Information that you can acquire |
||
|---|---|---|---|---|---|
|
Interface name |
Operation name |
Optional |
|||
|
1 |
0x8811 |
A |
-- |
-- |
-- |
|
2 |
0x8812 |
A |
-- |
-- |
|
|
3 |
0x8815 |
A |
-- |
-- |
-- |
|
0x8817 |
A |
-- |
-- |
-- |
|
|
4 |
0x8816 |
A |
-- |
-- |
|
|
0x8818 |
A |
-- |
-- |
||
- Legend:
-
A: Standard
--: Not applicable
- #
-
Corresponds to the numbers in Figure 8-39 and Figure 8-40.
