5.7.1 Overview of accessing network resources

The functionality to access network resources is used from J2EE applications, on the J2EE server running in Windows, for accessing the resources on other hosts. Using this functionality you can specify a UNC or a network drive to access the path of the resources of other hosts from the J2EE application. The following figure gives an overview of accessing network resources:

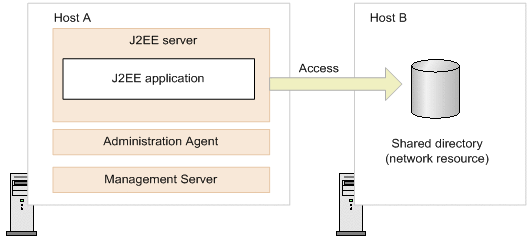

Figure 5‒17: Overview of accessing network resources

In this figure, the shared directory of HostB is assumed to be allocated to X drive of HostA. You can use the functionality for accessing network resources and access the HostB shared directory allocated to X drive from the J2EE application of HostA. Note that to use this functionality, you must start the Administration Agent on HostA where the J2EE application is running, using an account of the Administrators group.
