7.7 Releasing Explicit memory blocks when the automatic release functionality is enabled

This section describes the automatic release functionality of the Explicit management heap.

The functionality of automatically releasing the Explicit memory block is executed in two steps; reserving the release and the release process. You can perform effective processing by respectively reserving multiple Explicit memory blocks and executing the release process together.

There are two types of automatic release reserving; automatic release explicit reserving and automatic release automatic reserving. The following figure shows the automatic releasing of Explicit memory blocks.

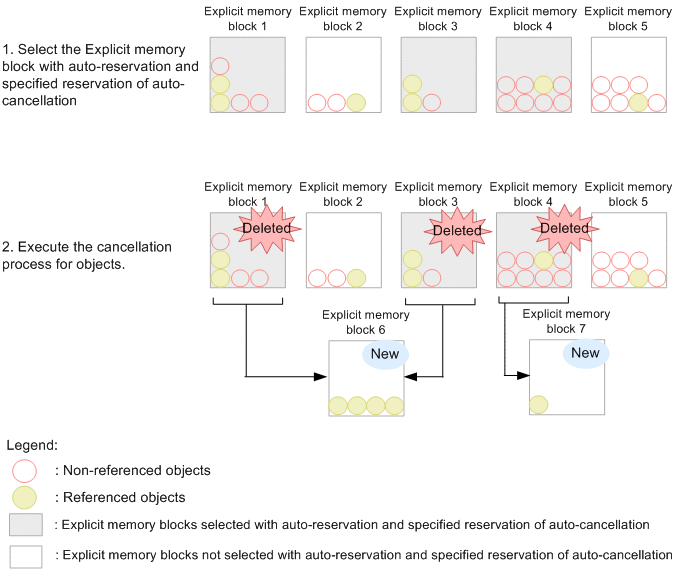

Figure 7‒12: Automatic releasing of the Explicit memory block

The following subsections describe the processing executed when the automatic release functionality is enabled.

Organization of this section

• 7.7.1 Explicit release reserving of the Explicit memory block when the automatic release functionality is enabled

• 7.7.2 Automatic release reserving of the Explicit memory block when the automatic release functionality is enabled

• 7.7.3 The process of releasing the Explicit memory block when the automatic release functionality is enabled
