3.9.2 Configuration for deploying Management Server on each machine
This subsection describes the configuration wherein you deploy Management Server on each Application Server machine, when performing operations using Management Server.
- Organization of this subsection
(1) Features of the system configuration
In this configuration, Management Server is deployed on each Application Server machine in a system that has multiple Application Server machines. You can perform operation management and can monitor each Application Server system. The Management Server executes the management operations based on Administration Agent.

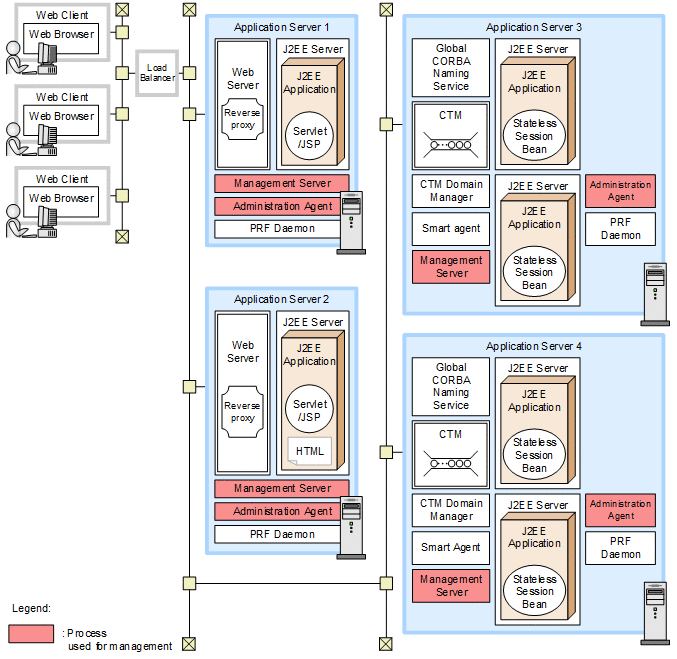

The following figure shows an example of the configuration for deploying Management Server on each machine. In this example, the resource managers to be connected are omitted.
|
|
![[Figure]](GRAPHICS/ZU034000.GIF)
Note: For other legend items, see 3.2 Description of the system configuration.
- Features
-
-
Suitable for operations on each Application Server machine.
-
(2) Required software and processes to be invoked on the respective machines
This subsection describes the required software and processes to be invoked on the respective machines in the case of a configuration wherein Management Server is deployed on each machine.
(a) Application server machine
For performing the operation management on each machine, invoke the following processes on the respective Application Server machines:
-
Management Server
-
Administration Agent
The required software and processes to be invoked on the Application Server machine are different for each system configuration, depending on the functions used. You deploy the required software and processes, depending on the used functions.
