3.9.1 Configuration wherein the Management Server is deployed on each Management Server
This subsection describes the configuration where you deploy a single Management Server on a domain, when performing operations using Management Server.
- Organization of this subsection
(1) Features of the system configuration
In this configuration, the management server machine is deployed for each domain on a system that consists of multiple Application Server instances. You can perform operation management and monitoring of each domain (Management domain ) that is already defined in Management Server. Management Server on the management server machine executes the management operations based on Administration Agent deployed on each Application Server machine.

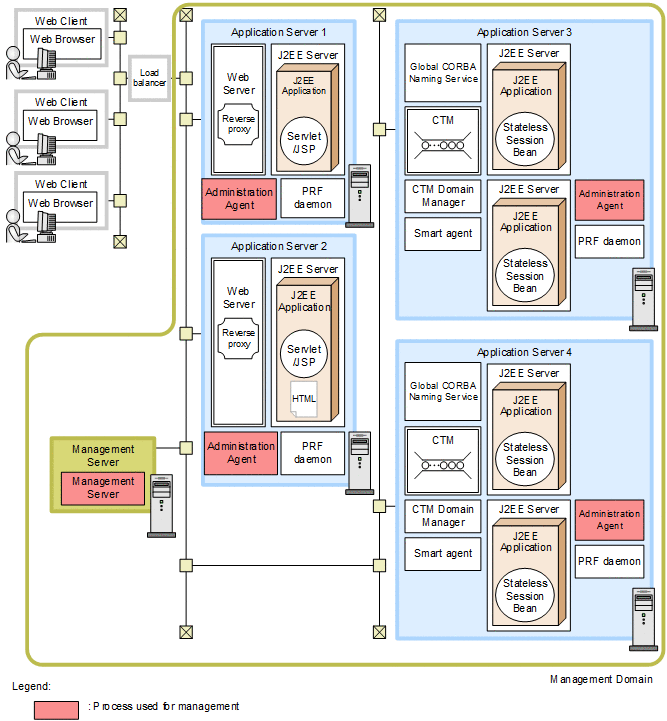

The following figure shows an example of a configuration wherein Management Server is deployed on the Management Server machine. In this example, the resource manager to be connected to is omitted.
|
|
![[Figure]](GRAPHICS/ZU033900.GIF)
Note: For other legend items, see 3.2 Description of the system configuration.
- Features
-
-
Suitable for batch operation of the systems.
-
Hitachi recommends that you prepare the machine for an isolated management server. You can, however, deploy Management Server on a single Application Server machine in the system.
-
(2) Processes invoked on the respective machines
This subsection describes the required software and processes to be invoked on the respective machines, in the case of a configuration wherein Management Server is deployed on a Management Server machine.
(a) Management Server machine
You need to install Application Server on the management server machine.
Invoke the following process:
-
Management Server
- Tip
-
If the management server machine cannot be prepared, you can configure a system where an Application Server instance present in the domain also performs the dual function of Management Server.
In such a case, deploy the processes of Management Server on the Application Server machine that functions as the Management Server machine.
(b) Application server machine
For performing the operation management on each Management Server, invoke the following process on the respective Application Server machine:
-
Administration Agent
The required software and the processes to be invoked on the Application Server machine are different for each system configuration, depending on the used functions. Deploy the required software and the processes, depending on the used functions.
