7.1.1 Overview of the automated action function

If an error occurs in the local system, the automated action function is executed as shown in Figure 7-1.

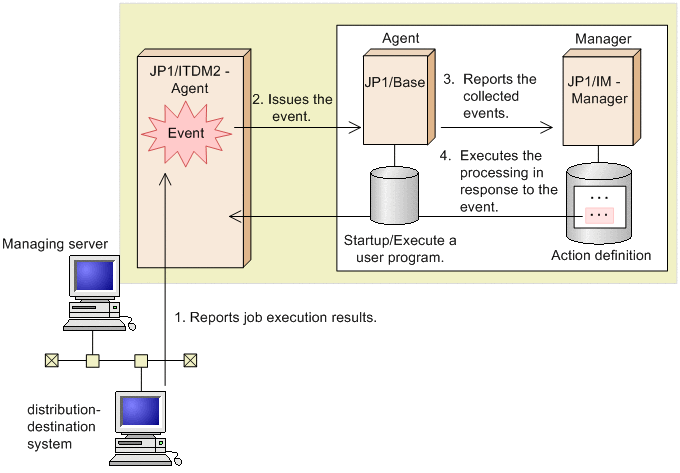

Figure 7‒1: Flow of processing for the automated action function using job completion events

1. The distribution-destination system reports job execution results to the managing server using either the result-reporting file or the status information file.

2. JP1/IT Desktop Management 2 - Agent issues a JP1 event associated with that information.

3. JP1/Base collects the JP1 events issued by JP1/IT Desktop Management 2 - Agent and reports them to JP1/IM - Manager.

4. After receiving the JP1 event, JP1/IM - Manager automatically processes an (action) based on the action definition for that event. This function is called the automated action function.
