5.4.5 Examples of operating environment setup

This subsection shows configurations of a JP1/IT Desktop Management 2 system, and provides setup examples for the machines in the system for each configuration.

Organization of this subsection

(1) Setup example for connection to a Windows managing server
(2) Setup example for using firewalls

(1) Setup example for connection to a Windows managing server

Figure 5-4 shows an example system configuration for connection to a Windows managing server. Figure 5-5 shows the environment settings for this configuration.

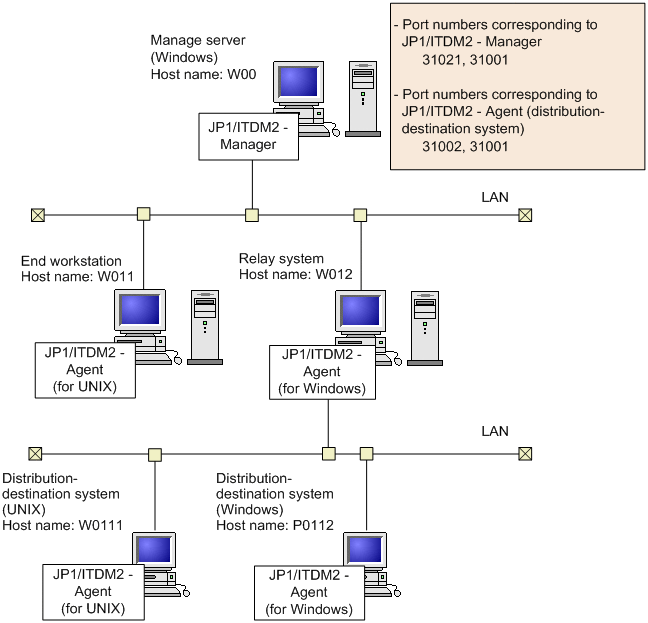

Figure 5‒4: System configuration for connection to a Windows managing server

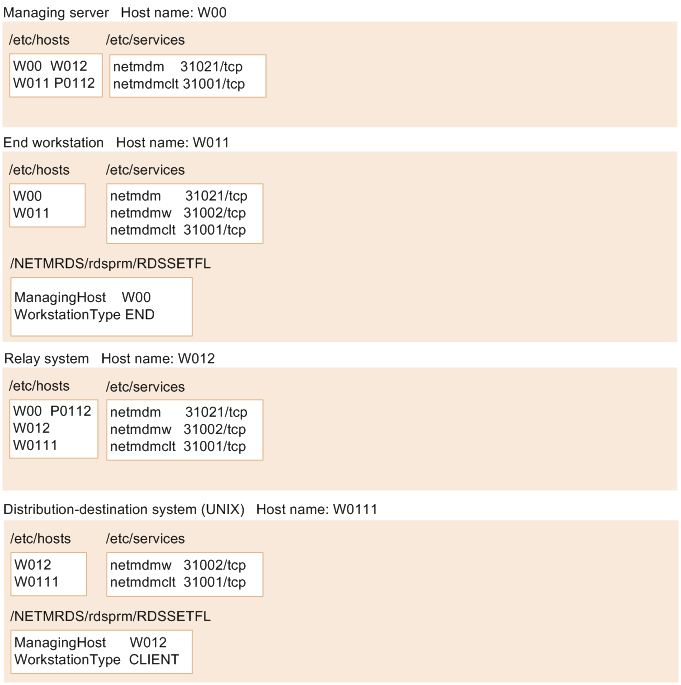

Figure 5‒5: Example environment settings for connection to a Windows managing server

To Page Top

(2) Setup example for using firewalls

Figure 5-6 shows an example system configuration with firewalls between the managing server and relay system. Figure 5-7 shows the environment settings for this configuration.

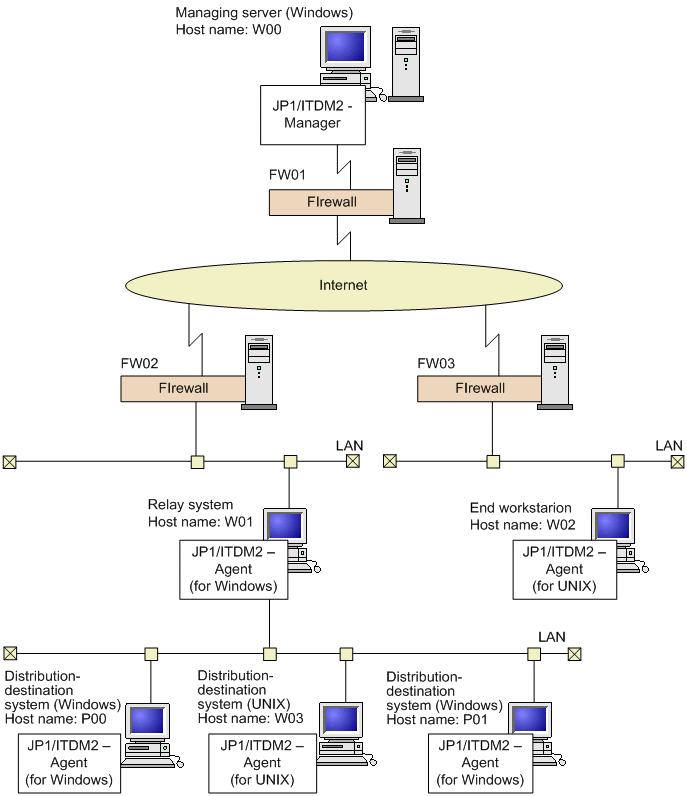

Figure 5‒6: System configuration for connection to firewalls

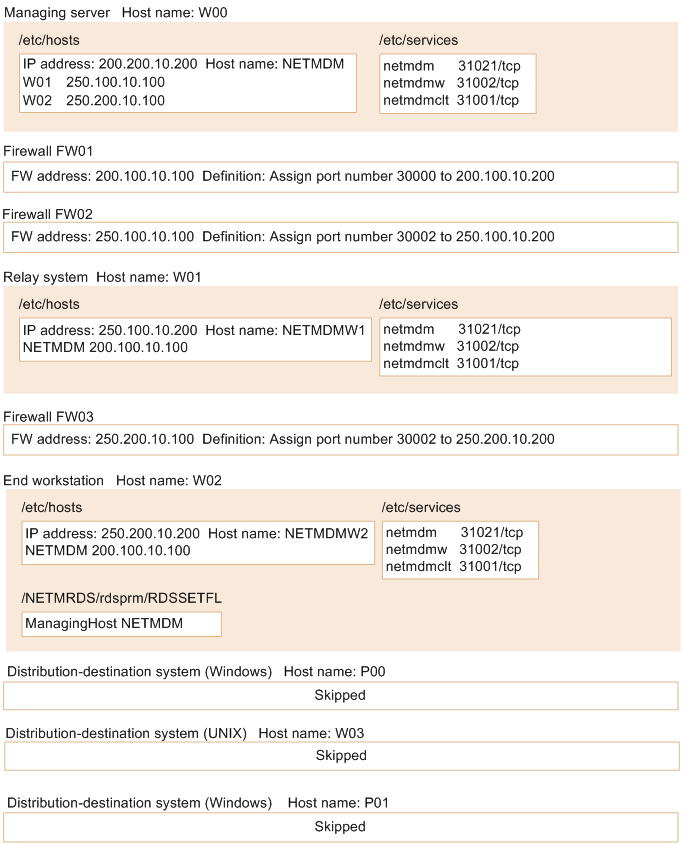

Figure 5‒7: Example environment settings for connection to firewalls
