B.3 Output format of audit log information

The following describes the output format, output destination, and output items of an audit log entry. Also shown is an example of audit log output.

Organization of this subsection

(1) Audit log output format
(2) Audit log output destination
(3) Output items
(4) Example of audit log output

(1) Audit log output format

An audit log entry consists of the string CALFHM indicating the information is formatted as an audit log, followed by the revision number of the audit log, and finally the relevant output items.

The following figure shows the output format of audit log information.

Figure B‒1: Audit log output format

To Page Top

(2) Audit log output destination

Audit log information is output to the following directory:

Audit log output destination:: JP1/IT-Desktop-Management 2 - Manager-installation-directory\mgr\log

To Page Top

(3) Output items

The items in an audit log fall into the following two categories:

Common output items

Items common to all JP1 products that output audit log data.
Fixed output items

Optional items each JP1 product can output as audit log data.

(a) Common output items

The following table lists the values output as common output items, and describes each item.

Table B‒2: Common output items in audit logs
No.	Output item		Value	Description
No.	Item name	Output attribute name	Value	Description
1	Common specification identifier	--	`CALFHM`	An ID indicating that the information is formatted as an audit log.
2	Common specification revision number	--	`1.0`	The revision number used to manage the audit log.
3	Sequence number	`seqnum`	`sequence-number`	The sequence number of the audit log entry.
4	Message ID	`msgid`	`message-ID`	The message ID of the product.
5	Date and time	`date`	`YYYY-MM-DDThh:mm:ss.sssTZD`^#	The date and time at which the audit log was acquired, and the time zone.
6	Generated program name	`progid`	`JP1ITDM2`	The name of the program that generated the event.
7	Generated component name	`compid`	`DistributionManager` The following commands and functions can generate audit log entries: Menu items in the JP1_IT Desktop Management 2 - Manager or JP1_IT Desktop Management 2 - Agent folder: Remote Install Manager Unarchiver Packager Commands: `Dcmcoll` Collect files `Dcmgpmnt` Apply policies to host groups as a batch `Dcminst` Create and execute jobs `Dcmjbrm` Delete jobs `Dcmjexe` Execute a job `Dcmpack` Execute packaging `Dcmpkget` Back up a package `Dcmpkput` Restore packages from a backup `Dcmpkrm` Delete a package `Dcmrmgen` Delete a job definition `Dcmrtry` Re-execute a job `Dcmstat` Acquire the execution status of a job `Dcmstsw` Monitor the execution status of a job `Dcmsusp` Suspend and resume file transfer	The name of the function that generated the event.
8	Generated process ID	`pid`	`process-ID`	The ID of the process where the event occurred.
9	Generated location	`ocp:host`	`host-name`	The host name of the host where the event occurred. If the host name could not be acquired, a hyphen (`-`) is output.
10	Event type	`ctgry`	`StartStop` `Authentication` `ContentAccess`	The category to which the event output to the audit log belongs.
11	Event result	`result`	`Success` The event was successful `Failure` The event was a failure `Occurrence` An event occurred (other than success or failure)	The result of the event.
12	Subject identification information	`subj:uid`	The user account or `Administrator`	Information about the user associated with the event.
12	Subject identification information	`subj:pid`	`process-ID`	Information about the process that caused the event

Legend:

--: No attribute name is output.

#

YYYY represents the year, MM the month, DD the day, hh the hour, mm the minutes, ss the seconds, and sss the milliseconds.

T is the delimiter between the date and time.

TZD specifies the time zone. One of the following is output:

+hh:mm: Indicates a time zone hh:mm ahead of UTC.

-hh:mm: Indicates a time zone hh:mm behind UTC.

Z: Indicates a time zone equivalent to UTC.

(b) Fixed output items

The following table lists the values output as fixed output items, and describes each item.

Table B‒3: Fixed output items in audit logs
No.	Output item		Value	Description
No.	Item name	Output attribute name	Value	Description
1	Action information	`op`	`Regist` Package registration `Execute` Execution of an Install package job or Send package, allow client users to choose job	Information about the user operation that caused the event to occur. Information is not output for operations that do not correspond to these values.
2	Free description	`msg`	Any message	A message describing the event.

To Page Top

(4) Example of audit log output

The following shows an example of the audit log data output in the process of starting Remote Install Manager in JP1/IT Desktop Management 2 - Manager and creating a host.

In this example, a host was created by the following procedure:

Start Remote Install Manager.
Perform user authentication.
Execute a job to create a new host.
Exit Remote Install Manager.

The audit log data output during this process is as follows:

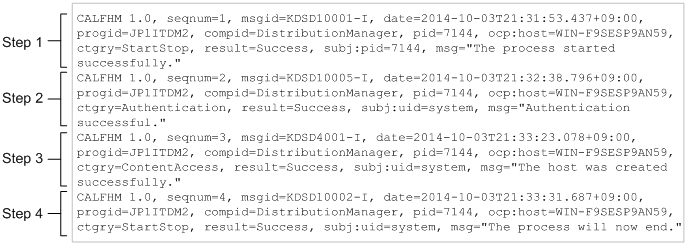

Figure B‒2: Audit log data
