17.5.2 Specifying the installer and the files for identifying the software to be distributed

The installer name in the AIT file and the file names (for identification) in the program product ID file must be specified with the relative paths from the packaging directory.

The following examples show how to specify the above file names in the AIT file and the program product ID file. In the following examples, suppose the files to be packaged exist at the CD-ROM drive (E:).

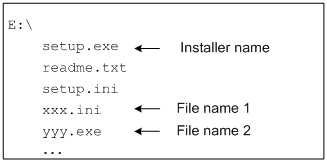

• When the packaging directory contains no subdirectories



  Packaging directory:

  E:\

  Installation program name you specify as package information in the AIT file:

  setup.exe

  File names you specify in the program product ID file:

  xxx.ini;yyy.exe

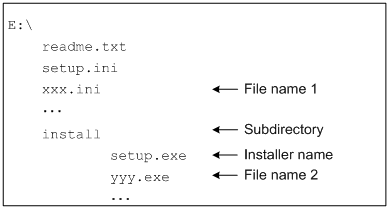

• When the packaging directory contains a subdirectory



  Packaging directory:

  E:\

  Installer name you specify as package information in the AIT file:

  install\setup.exe

  File names you specify in the program product ID file:

  xxx.ini;install\yyy.exe

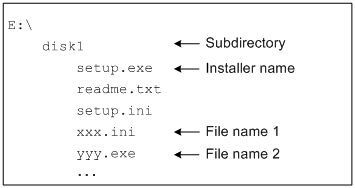

• When the packaging directory is a subdirectory



  Packaging directory:

  E:\disk1

  Installer name you specify as package information in the AIT file:

  setup.exe

  File names you specify in the program product ID file:

  xxx.ini;yyy.exe

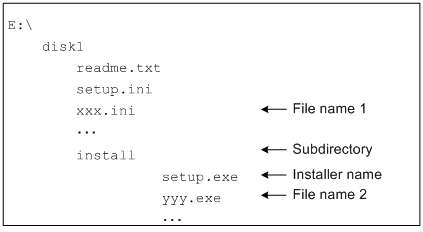

• When the packaging directory is a subdirectory that contains a subordinate directory



  Packaging directory:

  E:\disk1

  Installer name you specify as package information in the AIT file:

  install\setup.exe

  File names you specify in the program product ID file:

  xxx.ini;install\yyy.exe
