17.4 Recording installation operations

Use the Recorder of the Automatic Installation Tool to record installation operations you actually perform. The Recorder records the events issued when you performed installation operations such as pressing keys, clicking mouse buttons, and operations on controls. The Recorder then automatically creates an initial AIT file for simulating user operations. By modifying the initial AIT file, you can create the desired AIT file.

The Recorder automatically generates all the sections except PACKAGE_INFO. The following figure shows an example of an AIT file that is generated when the installation operations for Adobe Reader 6.0 are recorded.

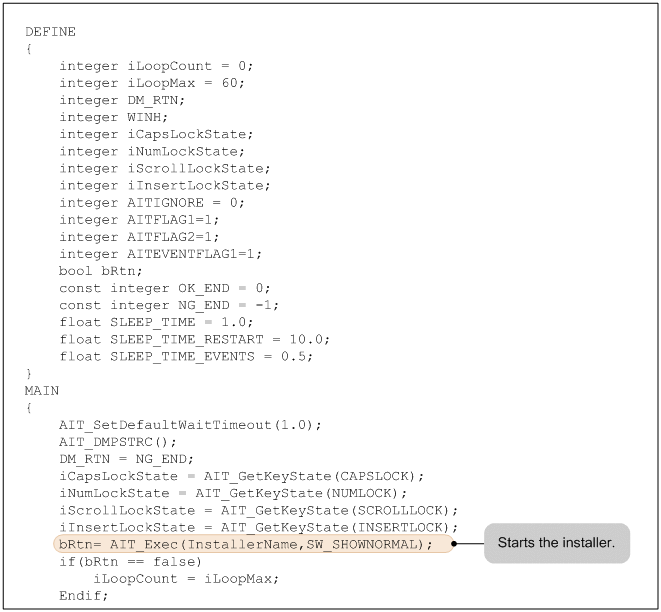

Figure 17‒5: AIT file generated automatically through recording installation operations for Adobe Reader 6.0 (1/3)

[Figure]
Figure 17‒6: AIT file generated automatically through recording installation operations for Adobe Reader 6.0 (2/3)

[Figure]

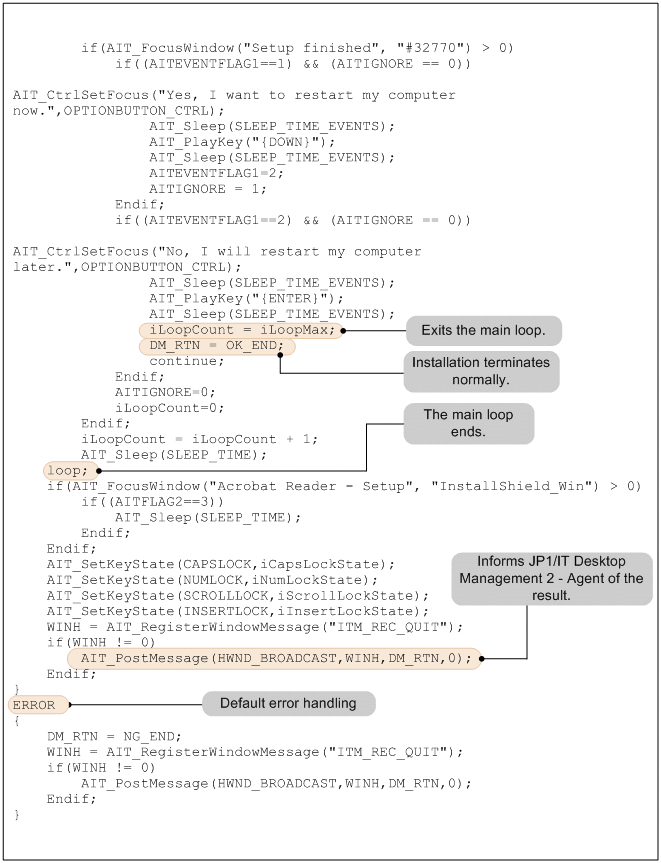

Figure 17‒7: AIT file generated automatically through recording installation operations for Adobe Reader 6.0 (3/3)

[Figure]
