6.5.1 Displaying deletion history

The deletion history of system configuration information is displayed in the Deletion History of System Configuration Information dialog box. To display this dialog box, from the File menu, select Deletion History of System Configuration Information. You can also display the dialog box from any Remote Install Manager window.

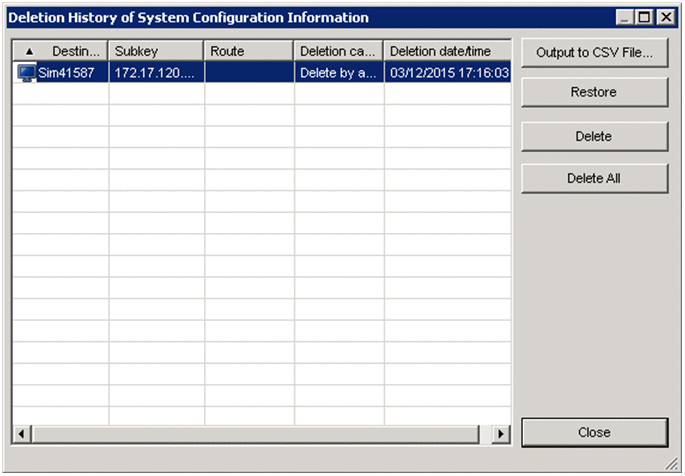

Figure 6‒34: Deletion History of System Configuration Information dialog box

In addition to Destination, Subkey, and Route, the Deletion History of System Configuration Information dialog box displays the following information for each deleted host:

Deletion cause

This column shows what caused the host to be deleted from the system configuration information.

Deletion cause	Meaning
Delete by uninstallation result	Uninstallation was reported by a managed computer, relay system, or management relay server. The host was deleted by a Get system configuration information job.
Delete by administrator	The managed computer, relay system, or management relay server was deleted manually from the System Configuration window. The managed computer was deleted manually from the Search dialog box. The host detected as a device suggested for deletion during device maintenance was deleted.
Delete by instruction from higher manager	When a lower system changed its connection destination, a management relay server received a deletion notification of system configuration information for a lower system remaining on an old route from the higher manager. A management relay server received a deletion notification from the higher manager due to operation of Delete from System Configuration Information in the menu opened from the Search dialog box.

Deletion time

The date and time when the host was deleted from the system configuration information.

You can also display the following items in the Deletion History of System Configuration Information dialog box:

Host ID, MAC address, Comment, Creation date/time, Update date/time

To add these items, from the right-click menu, select Select Information, and then select the items you want to display.

You can resize the Deletion History of System Configuration Information dialog box by dragging its borders. You can also sort the table in ascending or descending order of a particular column by clicking the column header.
