1.4.1 Viewing system configuration information

You can view and create system configuration information in the System Configuration window of Remote Install Manager. The network hierarchy in this window defines the actual routes used for job execution. The following figure shows the System Configuration window:

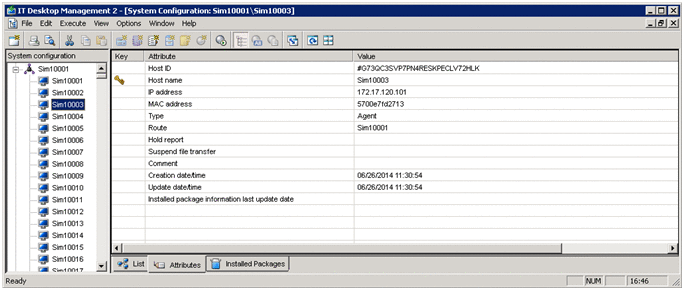

Figure 1‒13: System Configuration window

[Figure]

The left pane of the System Configuration window displays the system hierarchy. The icon representing the managing server ([Figure]) appears at the top of the hierarchy. When you double-click the icon for a relay system ([Figure]), the icons for the lower systems and managed computers under the relay system ([Figure]) appear. When managing servers are displayed in a hierarchical structure, the icons for management relay servers ([Figure]) appear under the managing server.

The host name or IP address of each management relay server, relay system, or managed computer appears beside the corresponding icon.

If you select a resource other than a managed computer in the left pane, the right pane shows the hierarchy under the selected resource.

For details about how to create system configuration information, see 5. Creating System Configuration Information and Host Groups.
