7.5.19  Remotely controlling a device by using the fullscreen display

By using the fullscreen display on the controller, you can perform remote control as if you were directly using the remote computer.

To remotely control a computer by using the fullscreen display:

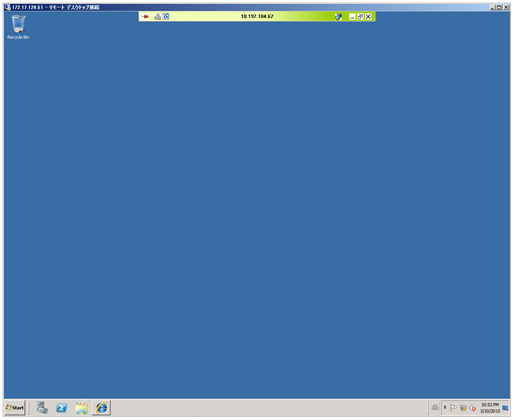

1. On the toolbar of the Remote Controller window, select .

The controller is switched to fullscreen display mode.

Tip

The controller might not be displayed in fullscreen if its window resolution cannot be changed.

If you move the cursor to the top of the screen while in fullscreen mode, the menu bar appears. You can use this menu bar to specify the screen display status or perform the operational equivalent of simultaneously pressing the Ctrl, Alt, and Delete keys on the remote computer. When you move the cursor away from the top of the screen, the menu bar disappears. Note that you can set the menu bar to be always displayed.

The color of the menu bar changes depending on the connection mode. Therefore, you can determine the current connection mode by the color of the menu bar.

• Green: Control mode

• Yellow: Common mode

• Orange: Monitoring mode

Use the menu bar to exit fullscreen mode.
