3.9 Procedure for changing the remote control settings on a management relay server

The procedure described here is included in the setup of a management relay server.

You can change the remote control settings on a management relay server.

To change the remote control settings on a management relay server:

1. Log on to the OS as a user with administrator permissions.

2. From the Windows Start menu, select All Programs, JP1_IT Desktop Management 2 - Manager, Tools, and then Setup.

3. In the setup window, click the Next button.

4. In the Select a Setup window, select Modify settings, and then click the Next button.

5. Continue to click the Next button until the Remote Control Settings window appears.

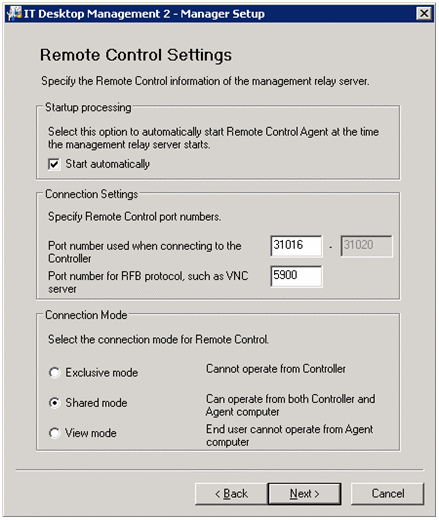

6. Optionally, change the following settings as necessary, and then click the Next button:

   • Startup processing

     You can set whether to automatically start the remote control agent when the agent for the management relay server starts.

   • Connection Settings

     For Port number used when connecting to the Controller, specify the port number to be used for a standard connection. For Port number for RFB protocol, such as VNC server, specify the port number to be used for RFB connection.

   • Connection Mode

     Select the mode in which the connection-destination computer permits connection.

7. In the window that appears, optionally specify the following settings as necessary, and then click the Next button:

   • Settings of Allowed Controllers

     You can add the controllers for which you want to allow to use the remote control function.

   • User Settings

     To authenticate the users who attempt to connect to controllers, add the Name and Type settings for those users.

8. Continue to click the Next button until the Confirm Setup Settings window appears.

9. In the Confirm Setup Settings window, confirm the specified settings, and then click the Next button.

   A dialog to confirm that Remote Install Manager and JP1/IT Desktop Management 2 - Asset Console have been stopped is displayed. After confirming, click the OK button. In the cluster system, make the cluster resources associated with the services displayed in the dialog offline, and then click the OK button.

10. In the Setup for Distribution by Using Remote Install Manager window, click the OK button.

    Setup starts, and a dialog box indicating that processing is in progress appears. When setup ends, the Setup has Completed window appears.

11. In the Setup has Completed window, click the OK button.

Now you have changed the remote control settings on the management relay server.
