3.8 Procedure for changing the communication settings on a management relay server

The procedure described here is included in the setup of a management relay server.

You can change the communication settings on a management relay server.

To change the communication settings on a management relay server:

  1. Log on to the OS as a user with administrator permissions.

  2. From the Windows Start menu, select All Programs, JP1_IT Desktop Management 2 - Manager, Tools, and then Setup.

  3. In the setup window, click the Next button.

  4. In the Select a Setup window, select Modify settings, and then click the Next button.

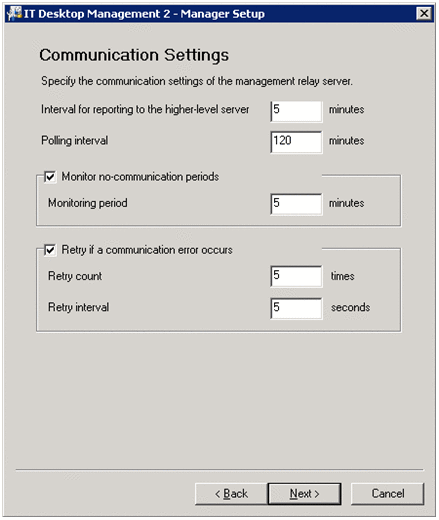

  5. Continue to click the Next button until the Communication Settings window appears.

    [Figure]

  6. Optionally, change the following settings as necessary, and then click the Next button:

    • Interval for reporting to a higher-level server

      Specify the interval at which to report the device information and device-related data to the higher management server.

    • Polling interval

      Specify the interval at which to perform polling between the management relay server and the higher management server.

    • Monitor no-communication periods

      If you select this option, the system assumes that a communication error occurred when the length of time during which the higher management server does not respond exceeds the preset time. Set the time for Monitoring period.

    • Retry if a communication error occurs

      If you select this option, the system retries communication when a communication error occurs. Specify Retry count and Retry interval.

  7. Continue to click the Next button until the Confirm Setup Settings window appears.

  8. In the Confirm Setup Settings window, confirm the specified settings, and then click the Next button.

    A dialog to confirm that Remote Install Manager and JP1/IT Desktop Management 2 - Asset Console are not being used is displayed. After confirming, click the OK button. In the cluster system, make the cluster resources associated with the services displayed in the dialog offline, and then click the OK button.

  9. In the Setup for Distribution by Using Remote Install Manager window, click the OK button.

    Setup starts, and a dialog box indicating that processing is in progress appears. When setup ends, the Setup has Completed window appears.

  10. In the Setup has Completed window, click the OK button.

Now you have changed the communication settings on the management relay server.
