3.6 Procedure for changing the higher connection destination settings of a management relay server

The procedure described here is included in the setup of a management relay server.

You can change the higher connection destination settings of a management relay server.

To change the higher connection destination settings of a management relay server:

1. Log on to the OS as a user with administrator permissions.

2. From the Windows Start menu, select All Programs, JP1_IT Desktop Management 2 - Manager, Tools, and then Setup.

3. In the setup window, click the Next button.

4. In the Select a Setup window, select Modify settings, and then click the Next button.

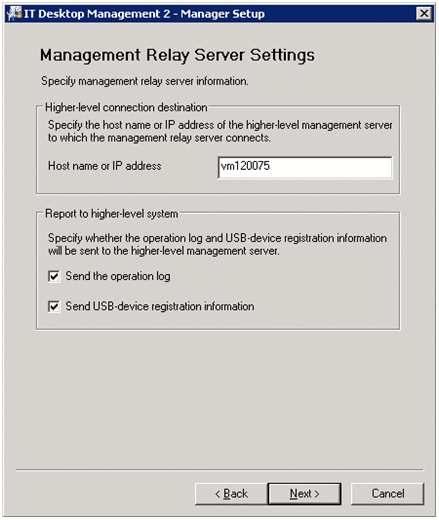

5. Continue to click the Next button until the Management Relay Server Settings window appears.



6. In Host name or IP address, specify the connection-destination host name or IP address, and then click the Next button.

   To specify this setting, use the ID key for operations selected in the Settings for Address Resolution window of the higher management server.

7. Continue to click the Next button until the Confirm Setup Settings window appears.

8. In the Confirm Setup Settings window, confirm the specified settings, and then click the Next button.

   A dialog to confirm that Remote Install Manager and JP1/IT Desktop Management 2 - Asset Console have been stopped is displayed. After confirming, click the OK button. In the cluster system, make the cluster resources associated with the services displayed in the dialog offline, and then click the OK button.

9. In the Setup for Distribution by Using Remote Install Manager window, click the OK button.

   Setup starts, and a dialog box indicating that processing is in progress appears. When setup ends, the Setup has Completed window appears.

10. In the Setup has Completed window, click the OK button.

Now you have changed the higher connection destination settings of the management relay server.
