3.5 Procedure for changing a port number

You can change a port number that is used on a management server.

Important

If you change a port number during operation, the agent connection is lost. When you change a port number, do not forget to change the port number setting on the agent.

To change a port number:

1. Log on to the OS as a user with administrator permissions.

2. From the Windows Start menu, select All Programs, JP1_IT Desktop Management 2 - Manager, Tools, and then Setup.

3. In the Setup window, click the Next button.

4. In the Select a Setup view, select Settings Modification, and then click the Next button.

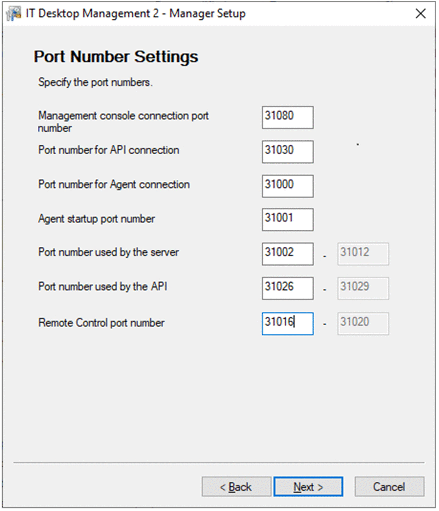

5. Continue to click the Next button until the Port Number Settings view opens.



6. Change a port number as needed.

   You can change the following settings:

   Management console connection port number

   On the computer on which JP1/IT Desktop Management 2 is used, enter the port number used to connect to the management server.

   Port number for API connection

   Enter the port number used for connecting to the management server from the external system via the API.

   Port number for Agent connection

   Enter the port number used to connect to the management server from the agent.

   Agent startup port number

   Enter the port number used for communication from the management server to the agent.

   Port number used by the server

   Enter the port number used by JP1/IT Desktop Management 2.

   Port number used by the API

   Enter the port number used by the management server when the API is used.

   Remote Control port number

   Enter the port number used by the remote control functionality.

   Port number for multi-server configuration connections

   In a multi-server configuration, enter the port number to be used by the management relay server.

   For details about port numbers, see A.1 Port number list.

7. Continue to click the Next button until the Confirm Setup Settings view opens.

8. In the Confirm Setup Settings view, check the settings, and then click the Next button.

   A dialog to confirm that Remote Install Manager and JP1/IT Desktop Management 2 - Asset Console have been stopped is displayed. After confirming, click the OK button. In the cluster system, make the cluster resources associated with the services displayed in the dialog offline, and then click the OK button.

9. In the Setup for Distribution by Using Remote Install Manager view, click the OK button.

   The setup process begins, and a dialog box appears indicating that setup is in progress. When setup has finished, the Setup Complete view appears.

10. In the Setup Complete view, click the OK button.

The port number is changed.
