2.10.3 Setting up JP1/IT Desktop Management 2 on the primary server
This subsection describes the setup views that require settings that are needed to run cluster systems.
- Important
-
If the OS is Windows Server 2019, Windows Server 2016 or Windows Server 2012, do not specify the following folders:
-
Folders under system-drive:\program files\WindowsApps
-
Folders in storage areas created by virtual provisioning
-
Settings in the Cluster Environment view

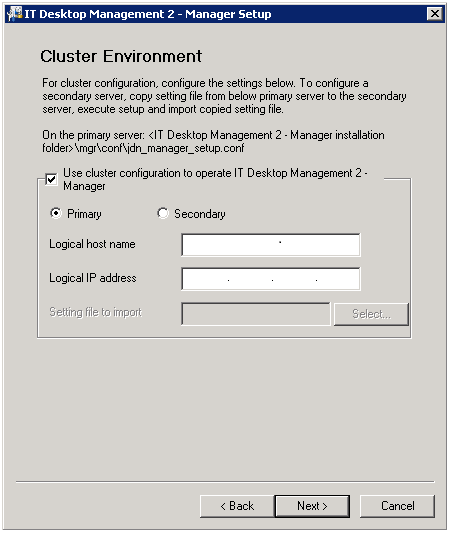

In the Cluster Environment view for setup, specify the settings needed to run a cluster system. The following figures show the Cluster Environment view.
Do the following:
-
Select Use cluster configuration to operate IT Desktop Management 2 - Manager.
-
Select Primary.
-
Set Logical host name and Logical IP address.
For this operation, you do not need to set Setting file to import.
When setup finishes the following, file is output. Copy this file to the standby server.
JP1/IT Desktop Management 2-installation-folder\mgr\conf\jdn_manager_setup.conf
Settings in the Folder Settings view

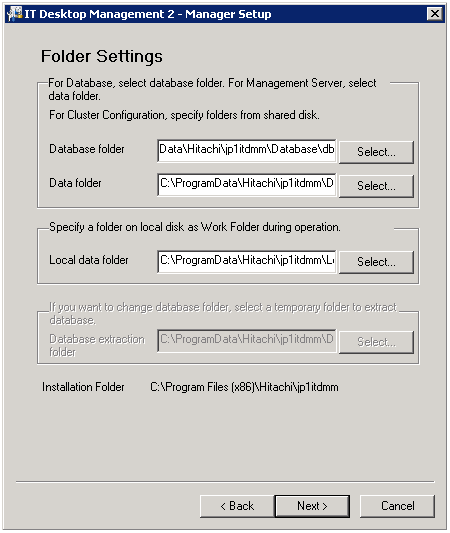

In the Folder Settings view for setup, specify the settings needed to run a cluster system. The following figure shows the Folder Settings view.
Enter the path to the shared disk in the following items:
-
Database folder
-
Data folder
In the following views, enter the path to the shared disk in following items:
-
Operation log database folder (when acquiring operation log data) and Operation log backup folder (when specifying a folder on a local disk as the folder for storing operation log data) in the Operation Log Settings view
-
Output folder for the revision history in the Output Settings for Saving the Revision History view (when specifying a folder on the local disk as the folder for storing revision histories)
For other items, use the normal setup procedure.
