4.4.11  JP1/IM linkage configuration

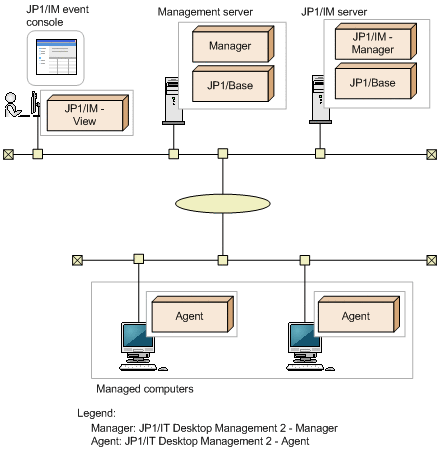

This system configuration allows you to link with JP1/IM. This allows JP1/IM to manage, as JP1 events, error events generated in managed computers and severe events that require the intervention of the administrator. The following figures show JP1/IM linkage configurations.

The JP1/IM linkage configuration requires JP1/IM and JP1/Base.

During setup of the JP1/IM linkage configuration, you must define the configuration file and the definition file for the extended event attributes.

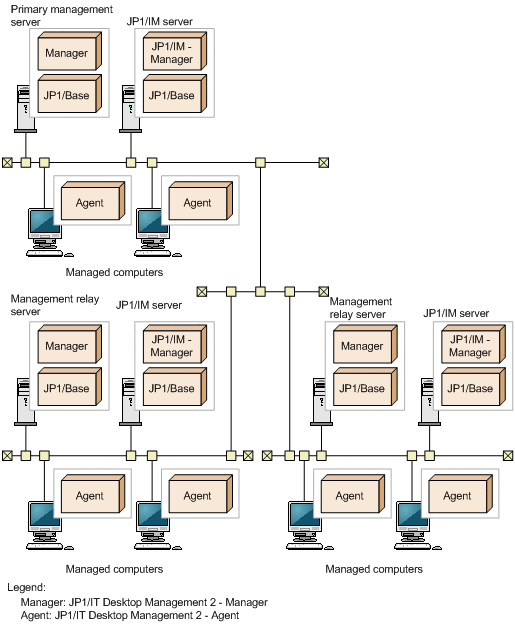

To check a generated event and take measures against it, you must use the management server that generated the event. Therefore, in a multi-server configuration, a JP1/IM server must be provided for each management relay server that manages each site. The following figure shows a JP1/IM linkage configuration in a multi-server configuration.

Tip

You can also manage all the sites using a single JP1/IM server. To do so, configure the management servers to link with the same JP1/IM server.
