Hitachi

JP1 Version 12 JP1/Extensible SNMP Agent Description, Operator's Guide and Reference


7.4.2 Acquiring a native agent adapter send/receive packet dump

A native agent adapter send/receive packet dump is used to investigate what kinds of SNMP messages were sent and received regarding the acquisition and configuration of standard MIB objects, either when there is no response to an SNMP request from the manager or when you suspect that a response is to an invalid SNMP message.

The following figure shows an example of a native agent adapter send/receive packet dump.

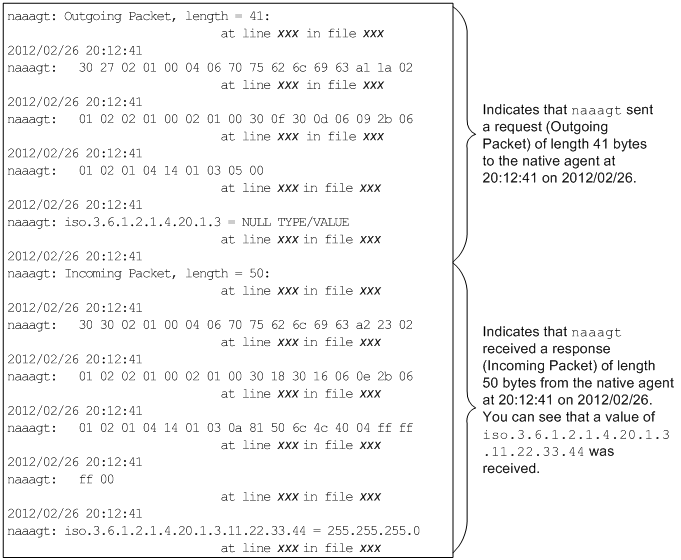

Figure 7‒2: Example of native agent adapter send/receive packet dump

[Figure]

Important

On HP-UX (IPF), a native agent adapter is not provided even though SNMP Agent is a native agent. Therefore, native agent adapter send/receive packet dumps are not available on HP-UX (IPF).
