JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


7.2.1 General procedure for configuring an SSO cluster system environment

The following figure shows the general procedure for configuring the environment of an SSO cluster system.

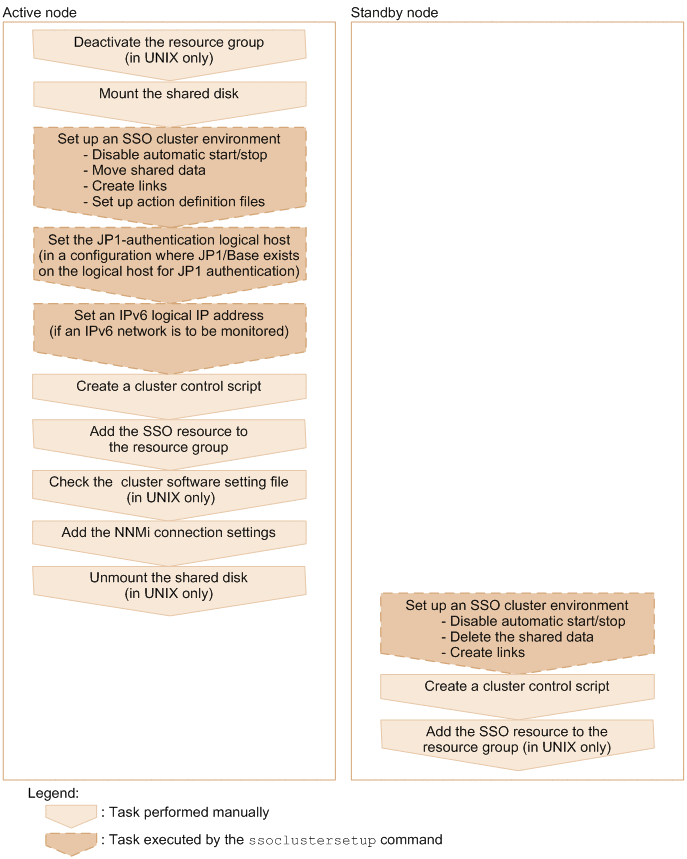

Figure 7‒15: General procedure for configuring an SSO cluster environment

[Figure]

Each step in the above procedure is described below.

Note that if the SSO daemon process is running on the active and standby nodes, stop it before you configure a cluster system environment.
