7.1.3 Logical configuration of the SSO cluster system

The SSO cluster system has one of the three logical configurations shown below. The logical configuration varies depending on the user authentication method used by the SSO console.

Configuration in which user authentication is not performed or in which JP1/Base is not used for SSO authentication
Configuration in which JP1/Base exists on the physical hosts
Configuration in which JP1/Base exists on the logical host

The above logical configurations of the SSO cluster system are described below.

Organization of this subsection

(1) Configuration in which JP1/Base is not used
(2) Configuration in which JP1/Base exists on the physical hosts
(3) Configuration in which JP1/Base exists on a logical host

(1) Configuration in which JP1/Base is not used

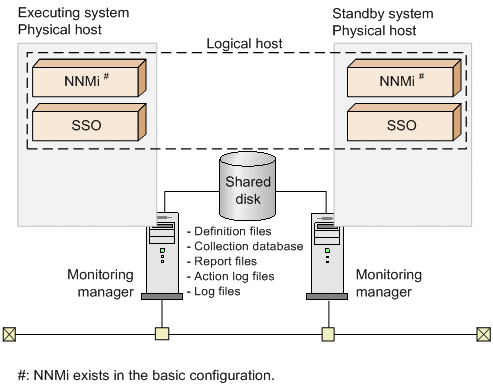

The following figure shows a cluster environment configuration in which JP1/Base is not used.

Figure 7‒6: Cluster environment configuration in which JP1/Base is not used

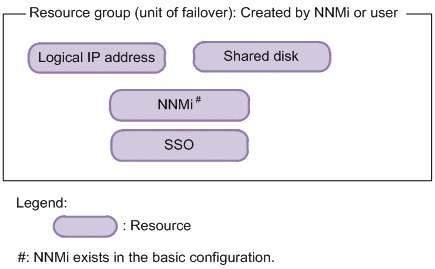

The following is a conceptual diagram of a resource group when the SSO resource is added to a resource group created by NNMi or by a user, in a configuration in which JP1/Base is not used.

Figure 7‒7: Conceptual diagram of a resource group in a configuration in which JP1/Base is not used

To Page Top

(2) Configuration in which JP1/Base exists on the physical hosts

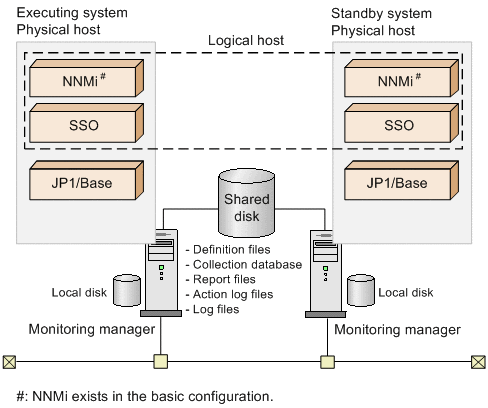

The following figure shows a cluster environment configuration in which JP1/Base exists on the physical hosts.

Figure 7‒8: Cluster environment configuration in which JP1/Base exists on the physical hosts

The following figure shows an overview of JP1 authentication in a configuration in which JP1/Base exists on the physical hosts.

Figure 7‒9: Overview of JP1 authentication in a configuration in which JP1/Base exists on the physical hosts

SSO connects to the authentication server via the JP1/Base on a physical host. Therefore, the authentication server must be set in JP1/Base on both physical hosts. When a physical SSO host is authenticated, the JP1/Base on that host does not need to run.

Note that in this configuration, JP1/Base is not included in the resource group.

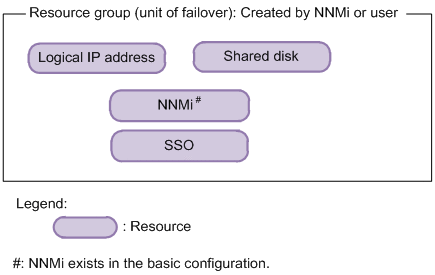

The following is a conceptual diagram of the resource group in a configuration in which JP1/Base exists on the physical hosts.

Figure 7‒10: Conceptual diagram of a resource group in a configuration in which JP1/Base exists on the physical hosts

To Page Top

(3) Configuration in which JP1/Base exists on a logical host

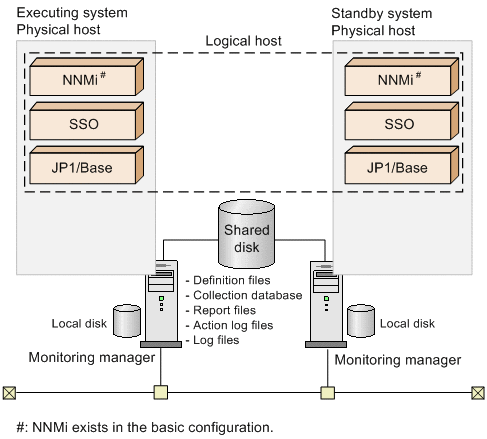

The following figure shows a cluster environment configuration in which JP1/Base exists on the logical host.

Figure 7‒11: Cluster environment configuration in which JP1/Base exists on the logical host

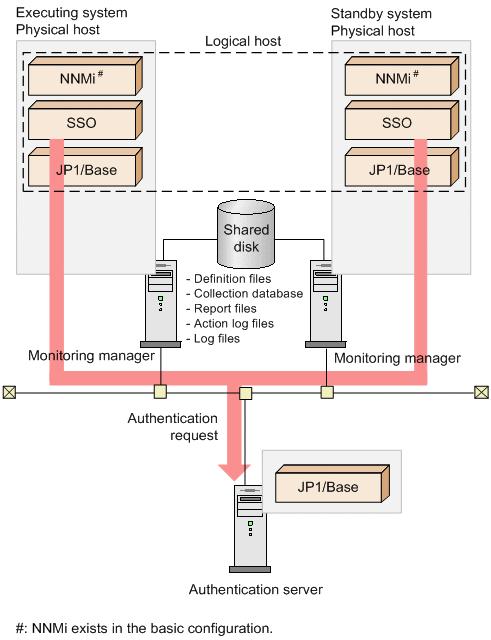

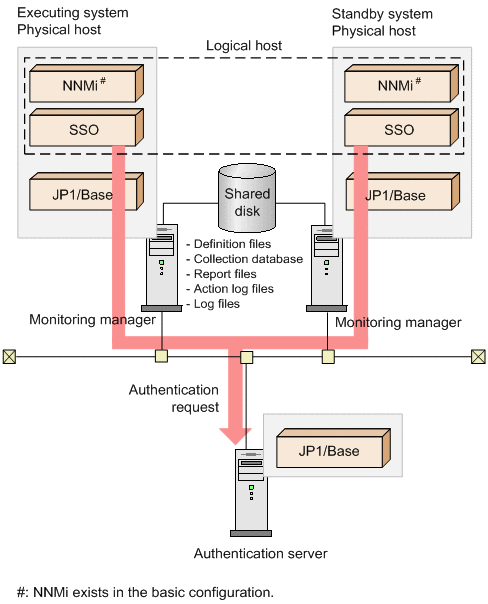

The following figure shows an overview of JP1 authentication in a configuration in which JP1/Base exists on the logical host.

Figure 7‒12: Overview of JP1 authentication in a configuration in which JP1/Base exists on the logical host

The authentication server is set in each instance of JP1/Base on the logical host. In addition, in the ssoconsoled action definition file (ssoconsoled.def), the logical-hostname: key is set to the logical host name. The initial value of this key is none, which specifies that the setting on a physical host will be used.

For details on the ssoconsoled action definition file (ssoconsoled.def), see 6.3.23 ssoconsoled action definition file (ssoconsoled.def).

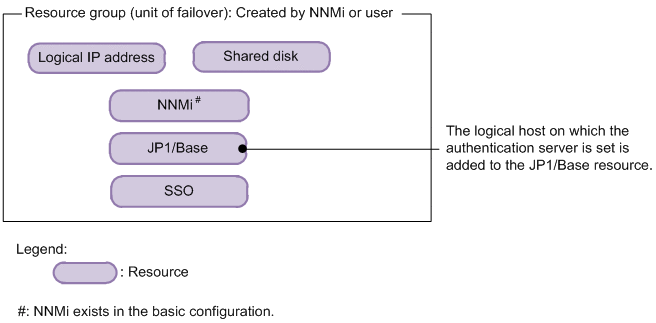

The following is a conceptual diagram of the resource group in a configuration in which JP1/Base exists on the logical host.

Figure 7‒13: Conceptual diagram of a resource group in a configuration in which JP1/Base exists on the logical host
