6.3.16 Monitor status definition file
The monitoring status definition file contains definitions of the monitoring status of a process or service.
- Organization of this subsection
(1) Format
The following shows the format of the monitoring status definition file.
![[Figure]](GRAPHICS/SS070800.GIF)
(2) Details of the monitoring target server definition
Write as many definitions as the number of monitoring target servers. This definition requires one or more definitions for the monitored application.
The following table shows the content of the definition.
|
Key name |
Explanation |
|---|---|
|
server |
Enter the monitoring target server name. For the server name, specify the host name or IP address within 255 bytes. |
(3) Details of the monitored application definition
After the monitoring target server definition, write as many monitored application definitions as the number of applications to be monitored on the target servers.
The following table shows the content of the definition.
|
Key name |
Explanation |
|---|---|
|
apname |
Enter the name of the monitoring target application. Enter an application name of 128 bytes or less. |
(4) Example

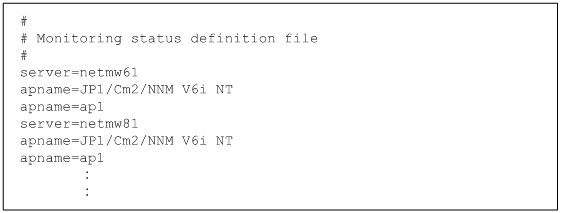

The following shows an example of a monitoring status definition file.
![[Figure]](GRAPHICS/SS070300.GIF)
