4.5.1 Collection Data Detail window

The Collection Data Detail window references the values of collected data. It displays the period during which the data was collected and the instance name. In this window, you select a date and time and an instance and reference the values of the collected data. You can also filter the data to display only data within a specified range. The following figure shows the Collection Data Detail window.

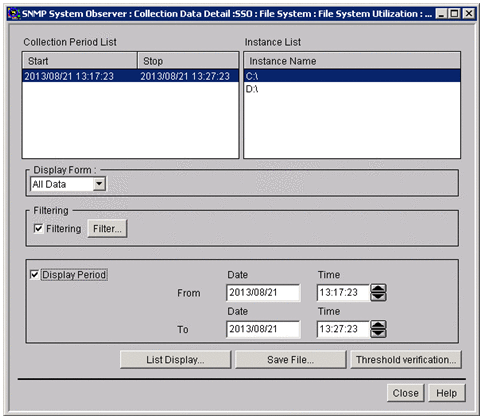

Figure 4‒51: Collection Data Detail window

[Figure]

The items to be set are:

Collection Period List

This box displays the collection period of the collected data. If only the collection start date and time are displayed, it means that the data is currently being collected. You can select multiple lines as long as they are adjacent.

Instance List

This box displays the instances for which resources were collected.

Display Form:
All Data

SSO displays the collected data as is.

Daily Data

SSO displays the data collected over one day.

Monthly Data

SSO displays the data collected over one month.

Filtering

Select this checkbox when you want to filter collected data. You can specify a range of values for each subresource and filter just those values.

Filter

This button displays the Set Filter Condition window.

Display Period

Select this checkbox when you want to specify the collection period of the data to be displayed. When this checkbox is selected, you can specify a period for displaying the collected data.

Date

Specify a range between January 1, 1980 and December 31, 2099 in the format yyyy/mm/dd. You can specify a range if you selected the Display Period checkbox.

Time

Specify a range between 00:00:00 and 23:59:59 in the format 00:00:00. You can specify a range if you selected the Display Period checkbox.

List Display

This button displays the collected data selected in Collecting Period List and Instance List, in the Listing Display window.

Save file

This button displays the Save file window.

For details on the Save file window, see 4.5.4 Save File window. If you opened this window from the SSO console, this button is not displayed.

Threshold verification

This button displays the Threshold verification window.

For details on the Threshold verification window, see 4.5.7 Threshold verification window. If you opened this window from the SSO console, this button is not displayed.
